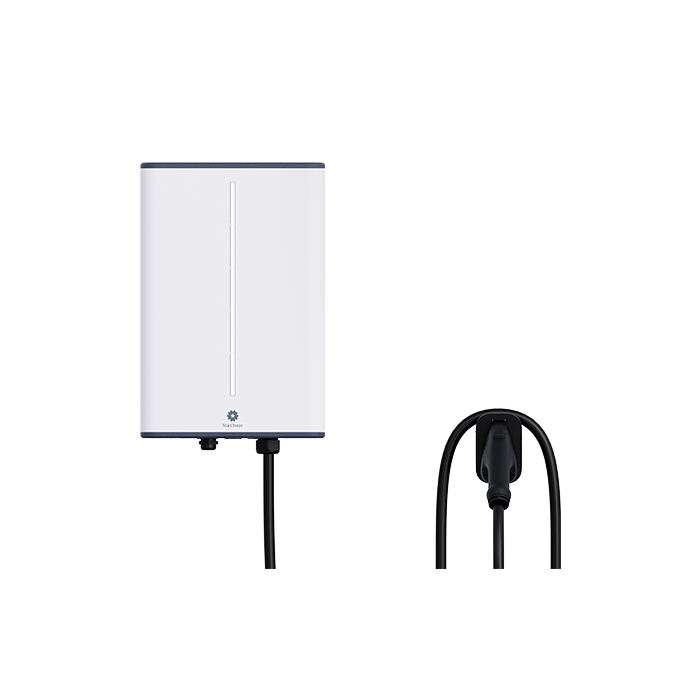

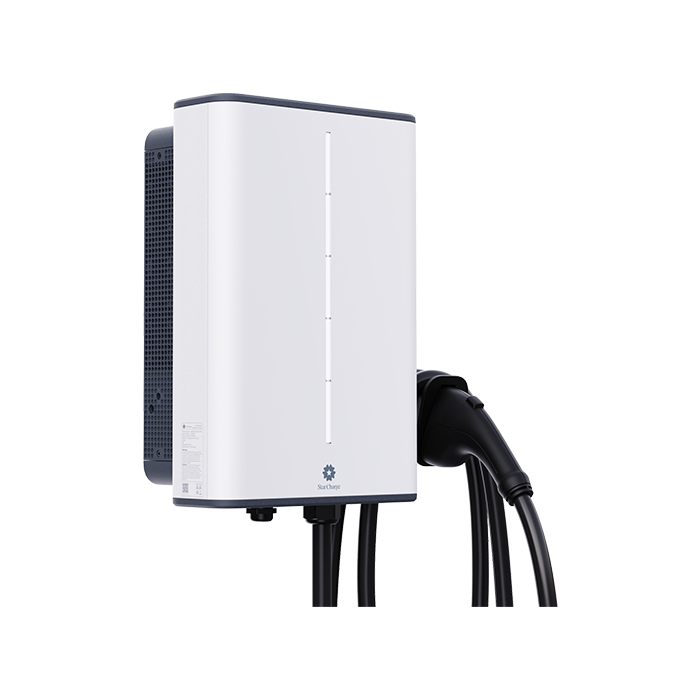

Halo IEC 7.4/11kW bi-directional DC wallbox
The Halo Series IEC 7.4/11kW Bi-directional DC Wallbox is a V2G bi-directional DC charging device designed for global residential and light commercial applications. It supports full two-way power flow for both charging and discharging, covering a wide range of energy scenarios including Vehicle-to-Grid (V2G), Vehicle-to-Home (V2H), and off-grid backup power supply.
Developed to eliminate cross-border grid compatibility barriers, the product complies with grid interconnection standards adopted by numerous European countries. It supports mainstream protocols such as ISO 15118-20 and OCPP 2.0.1, enabling seamless data exchange among electric vehicles, energy management platforms and public power grids.
Every electric vehicle compatible with ISO 15118-2/-20 connected to this wallbox acts as a flexible distributed energy storage unit capable of peak shaving, emergency power supply and grid frequency regulation, forming a mobile energy internet.
Product Advantages
-
Multi-application
bidirectional power flow for charging and discharging (V2H/V2G).
-
Easy to install
Light and compact for one-personnel installation.
-
Easy to use
Backend & smart APP control.
-
Wide range of output
Up to 920Vdc, applicable to EVs at both 400V and 800V platform.
Enhanced reliability and product lifetime with IP65 high protection class design.
-
Low noise design
Silent mode & automatic fan speed control.
-
Various comm. Methods
Wi-Fi, 4G, Blue-tooth, Ethernet, RS485, etc.
-
Remote maintenance
Remote diagnosis and OTA.

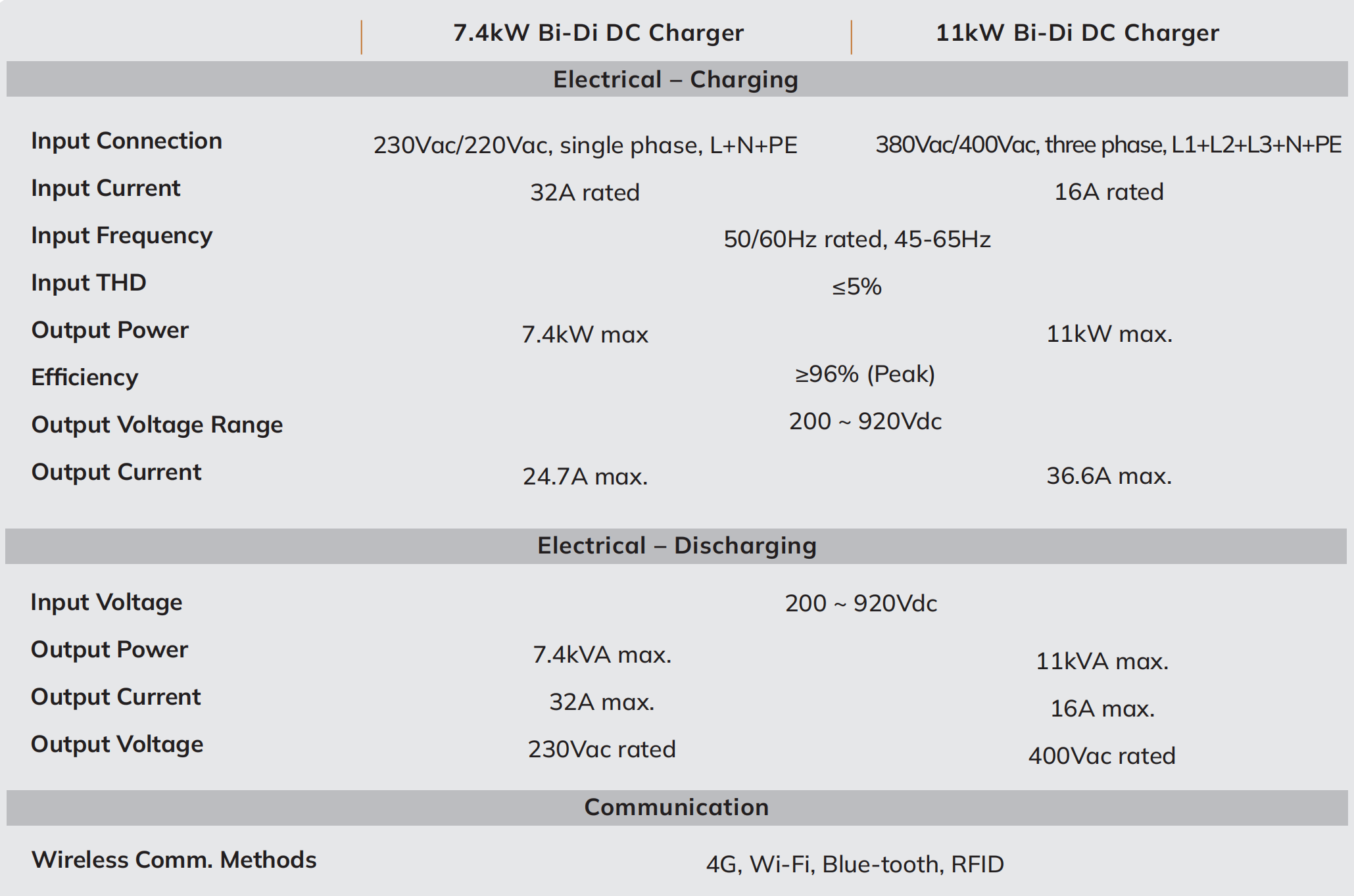

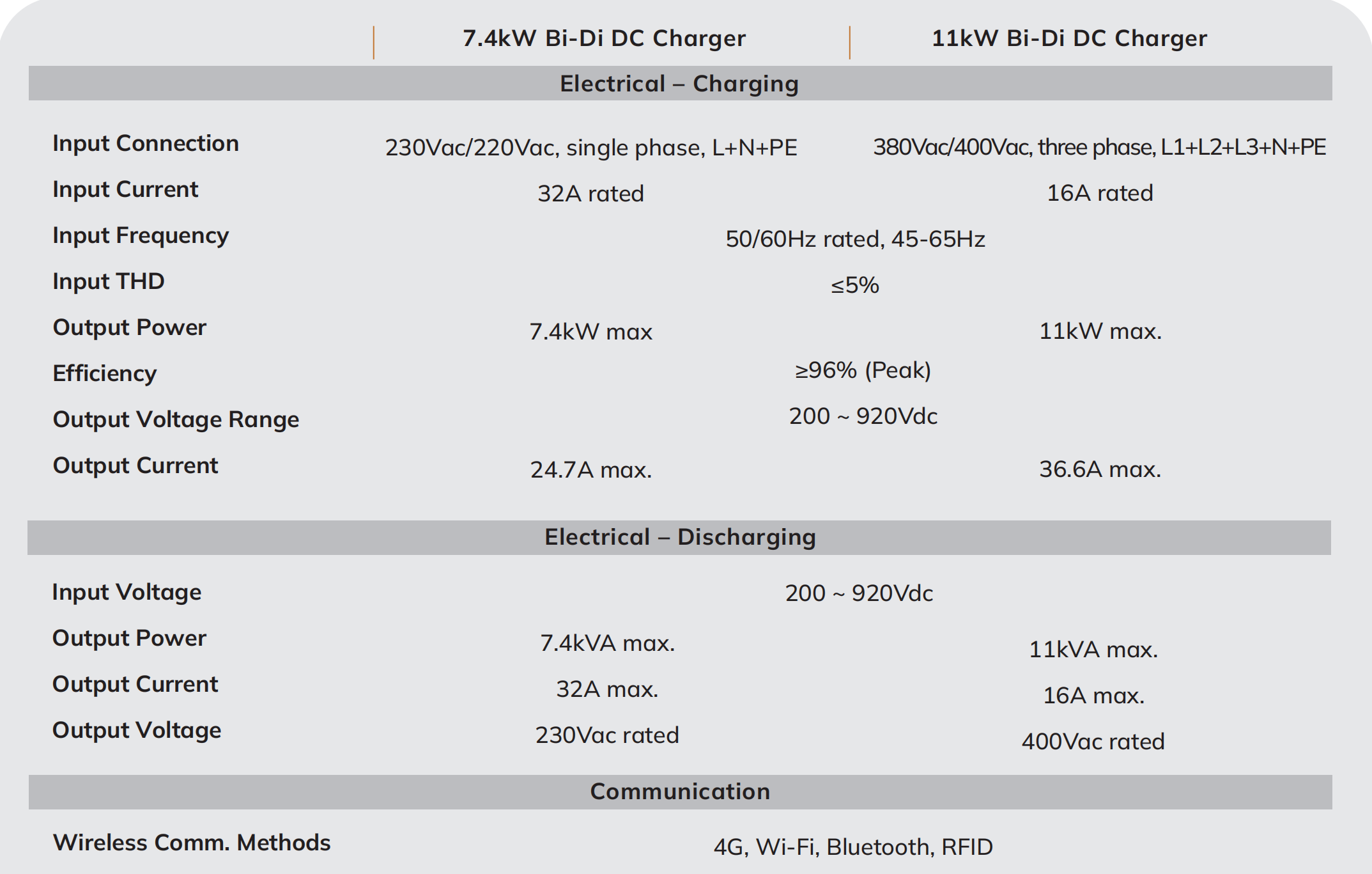

Product Parameters
| Ingress protection | IP65 |
| Impact protection | IK10 |
| Noise | <55dB (@25°C ambient temp.)/<45dB in silent mode |
| Dimensions (WxHxD) | 323×480×175mm/342x520x185mm |
| AC connection | 230/220Vac, 50/60Hz,single phase/380Vac/400Vac, 3 phase, L1+L2+L3+N+PE |
| Rated input current | 32A/16A max |
| Rated output power | 7.4kW/11kW |
| Output voltage range | 200-920Vdc |
| Output current | 24.7A max/36.6A max. |
| Output apparent power | 7.4kVA/11kVA |
| Output active power | 7.4kW |
| Rated output current | 32A/16A |
