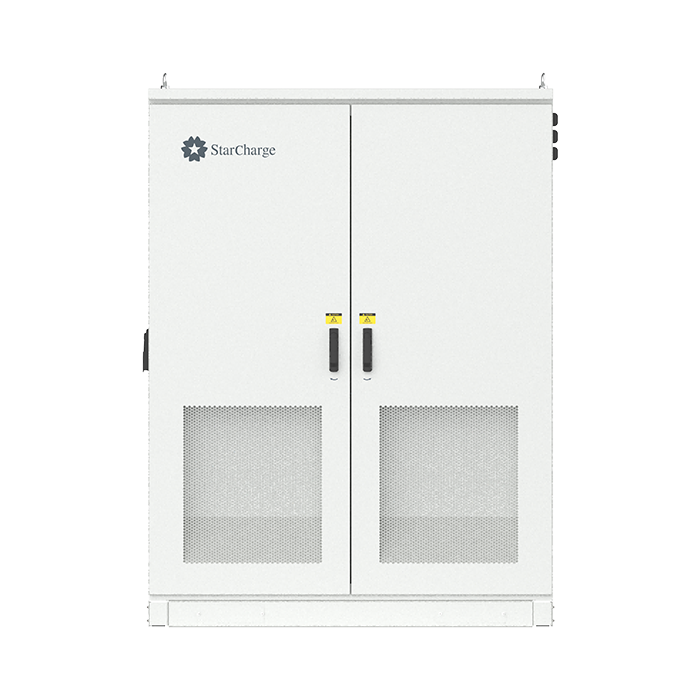

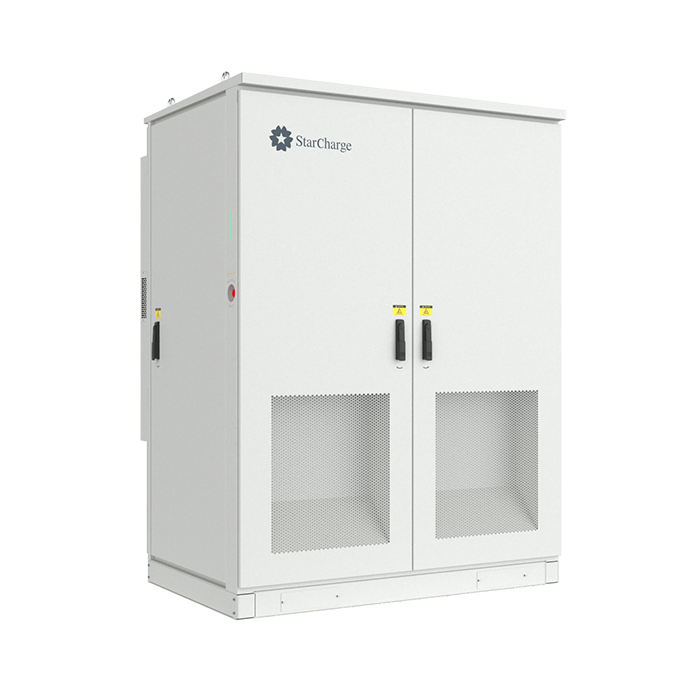

Nova V4
480kW/720kW
Nova V4 is a split‑type power cabinet.
Boasting core strengths including high‑power output, full‑scenario adaptability and dynamic power allocation, it supports up to 12 output ports and carries CE and UL certifications.
Product Advantages
-
High‑efficiency & Energy‑saving
It reaches 97% peak efficiency with system efficiency no less than 96%.
The efficiency‑optimized algorithm brings an extra 0.5‑percent performance gain, lowering power loss and energy costs.
-
High Expandability
Each power cabinet supports up to 12 output ports.
Aggregated power technology enables power upgrades for existing charging stations and builds megawatt‑level charging systems.
-
Reliable Protection
With IP55 environmental‑protection grade and IK10 impact‑resistance rating, multiple built‑in system safeguards enable stable operation under harsh outdoor conditions.
-
Convenient Maintenance
Forced‑air‑cooling cooling structure is adopted.
All gel‑filled rectifier modules cut down failure rates and extend the service life of equipment.
Product Parameters
| AC Input Voltage | 400Vac±15%, three‑phase, 50/60Hz, 2 x (L1+L2+L3+N+PE) |
| AC Input Current | 480kW（737A）/720kW（1100A） |
| Output Power | 480kW/720kW |
| Output Voltage | 150‑1000V DC |
| Output Current | 480kW（1600A）/720kW（2400A） |
| IP Rating | IP55 |
| IK Rating | IK10 |
| EVSE Cooling | Forced air‑cooling |
| Dimensions (WxHxD) | 1503 x 2149.5 x 1220mm |
