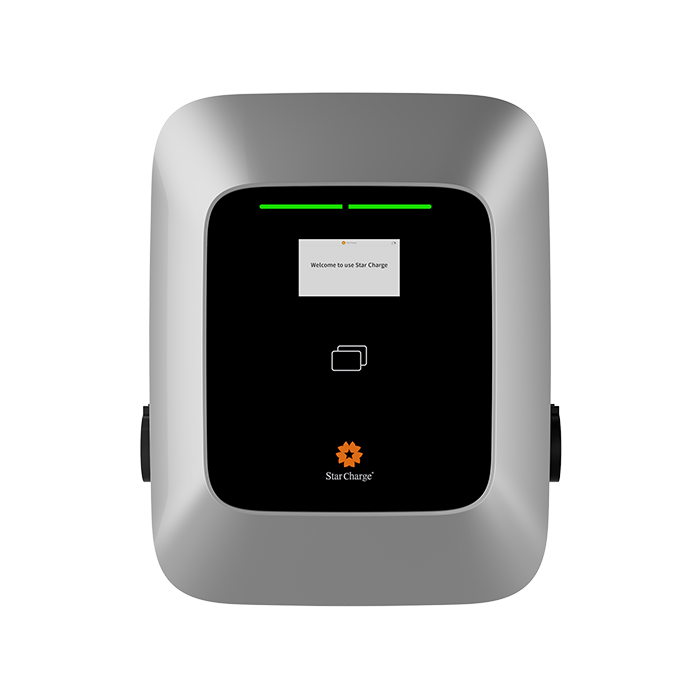

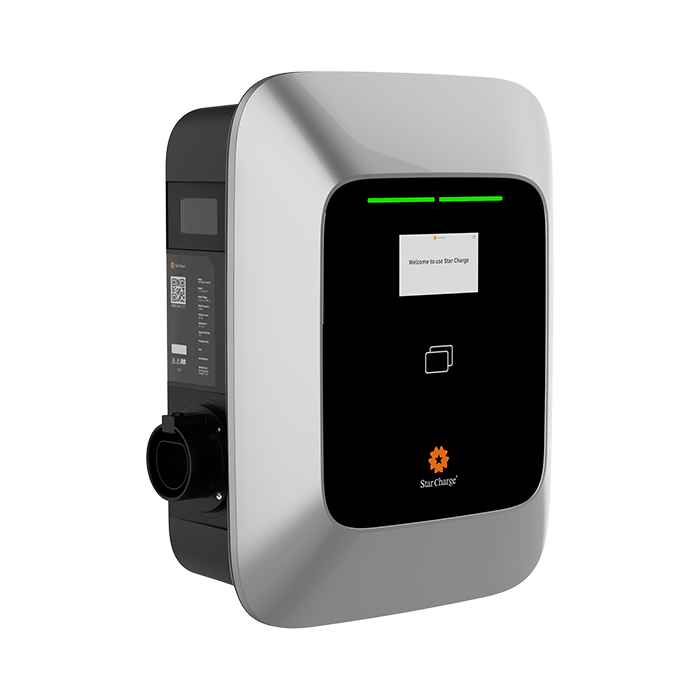

Saturn
Double the Power, Maximum Efficiency
Certified Precision & Complete Security
Smart Integration, Seamless Access
Boost your charging operations with a high-efficiency dual 22kW output, designed with a space-saving footprint for highly flexible installation methods.
Compliant with strict Germany Eichrecht (PTB Class B) and MID standards for accurate billing, featuring Type A + DC 6mA RCD and comprehensive safeguards for absolute peace of mind.
Easily connect to any backend via OCPP 1.6J protocol over 4G, Wi-Fi, or Ethernet, offering user-friendly authentication through RFID cards, QR codes, and a clear 4.3-inch LCD display.
Product Advantages
-
Excellent operation efficiency, dual 22 kW output.
-
Connect to any backend based on OCPP 1.6J protocol.
-
Germany Eichrecht certification.
-
Space-saving for flexible installation methods.
Product Parameters
Swipe Left
| Input/Output Power Rating | 2*22kW |
| Charging Interface | Configuration 01: 2xIEC62196-2 Type2 connector (CaseC) Configuration 02: 2xIEC62196-2 Type2 socket (CaseB) |
| Metering | MID meter, Class B; PTB meter, Class B |
| Internal RCD | Type A+DC 6mA |
| Protection | Overcurrent, Overvoltage, Undervoltage, Residual current, Over temperature, Grounding fault, Integrated surge protection |
| Display | 4.3-inch LCD display |
| User Authentication | RFID card (ISO/IEC 14443A, ISO/IEC 15693), QR code |
| Network Interface | 4G, Wi-Fi, Ethernet |
| Protocol (EVSE&Backend) | OCPP 1.6J |
| Operating Temperature | -30℃~+50℃ |
| Altitude | ≤2500m |
| IP Rating | IP55 |
| IK Rating | IK10 |
