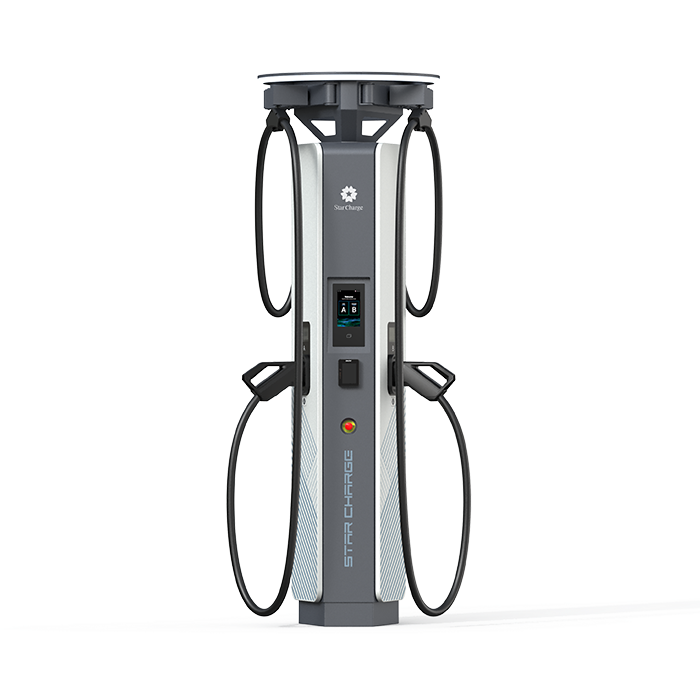

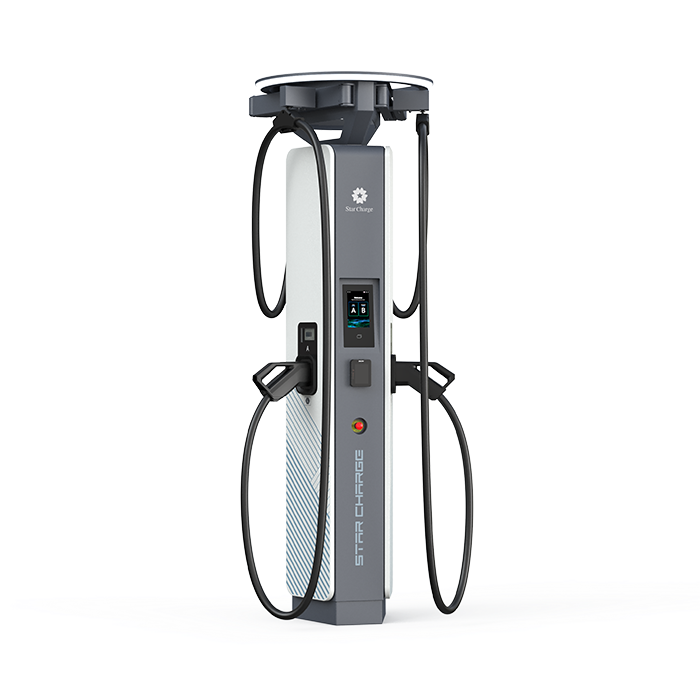

Aries V2
Aries V2 is a split-type DC charging terminal. It supports high-current output with a maximum current of 600A, featuring multi-interface compatibility and ultra-fast charging performance.
Product Advantages
-
High Current & High Power Output
Delivers a maximum output current of 600A and a single-connector peak power up to 600kW.
-
High Expandability
Supports flexible expansion with up to 12 output ports for diversified charging configurations.
-
Accelerated Fast Charging Technology
Adopts advanced accelerated charging technology, saving 5–10 minutes per single charge and improving station turnover rate by 15%.
-
Multi-Interface Compatibility
EU version is equipped with dual CCS2 ports; North American version supports CCS1 and NACS connectors to cover mainstream global vehicle models.
Product Parameters
Swipe Left
| Charging Interface | 2 x CCS2 plug |
| Output Voltage | 150-1000V DC |
| Output Current | 380A rated (600A max.) |
| Screen Type | 7-inch touch screen |
| IP Rating | IP55 |
| IK Rating | IK10 (Screen IK08) |
| EVSE Cooling | Natural cooling |
| Charging Cable Length | CCS2: 5m |
| Dimensions (WxHxD) | 720 x 2169 x 720mm |
