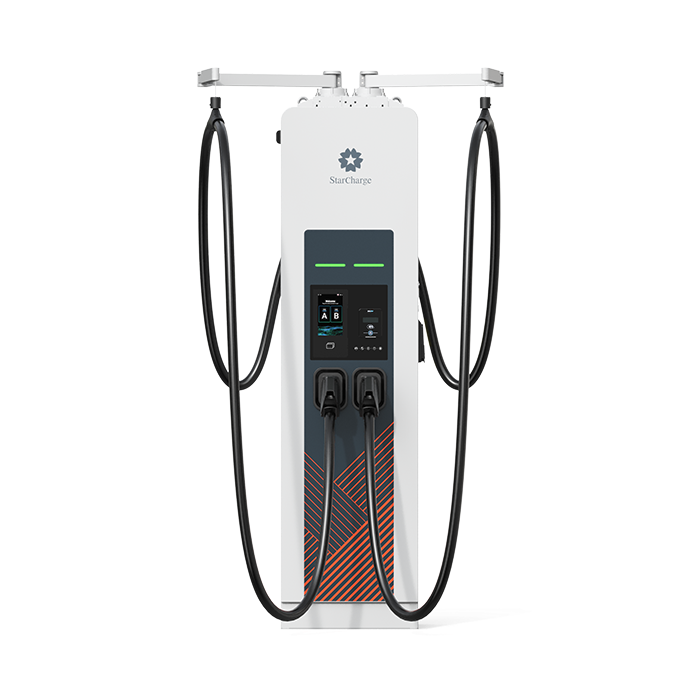

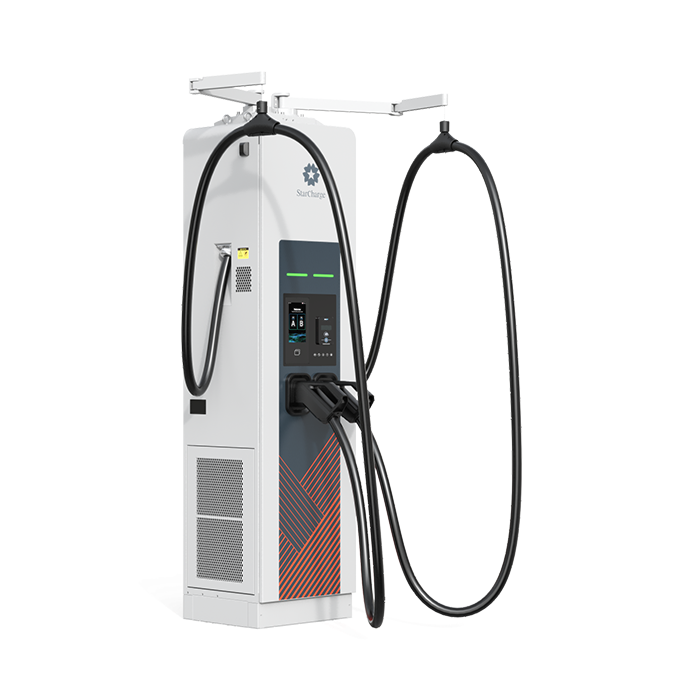

Hydrus Plus
The Hydrus series consists of charging‑terminal products launched by Wanbang Digital Energy for public charging, commercial real‑estate and fleet‑operation scenarios. It covers full power ranges from AC slow‑charging to DC ultra‑fast charging. With a modular structure, the series enables flexible configuration and remote management.
Product Advantages
-
Bridge Power
The terminal is equipped with a bridge relay, and time-sharing multiplexing can achieve a full matrix for a single gun.
-
Space-Saving
Only 0.125㎡ footprint, 75% smaller than the revious generation.
-
Interface Compatibility Support
CCS1, CCS2, NACS and GBT.
-
User‑Friendly Experience
Boasting a‑1000‑nit screen, 20% brighter than conventional displays. The lightweight charging‑gun cuts handling weight by 40%.
The ergonomic gun holder simplifies cable pick‑up and placement. Plug‑and‑charge function is available.
Product Parameters
| Charging Interface | CCS2 *2/CCS2 + GBT (Liquid-cooling) |
| Output Voltage | 150‑1000V DC |
| Output Current | 600A rated (800A max.) |
| Screen Type | 7-inch touch screen |
| IP Rating | IP55 |
| IK Rating | IK10 (Screen IK08) |
| EVSE Cooling | Liquid Cooling |
| Charging Cable Length | 5m |
| Dimensions (WxHxD) | 500 x 1700 x 250mm (Without CMS) |
