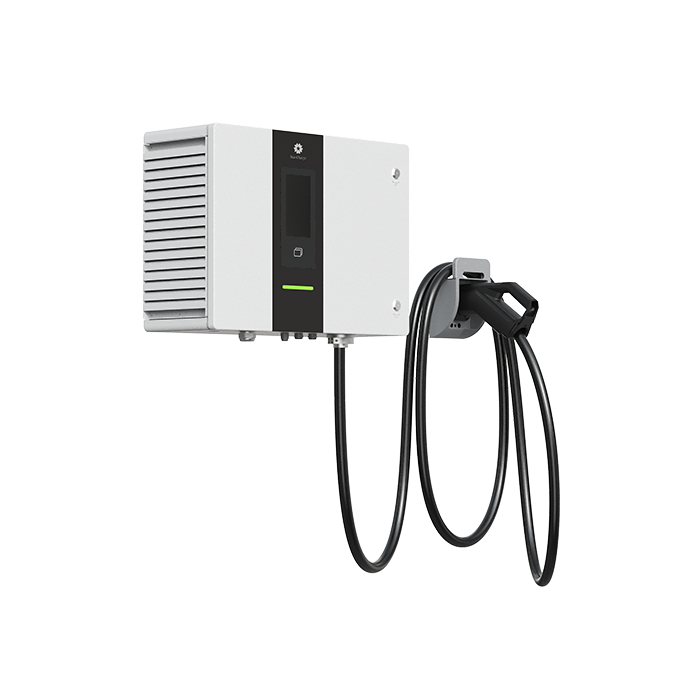

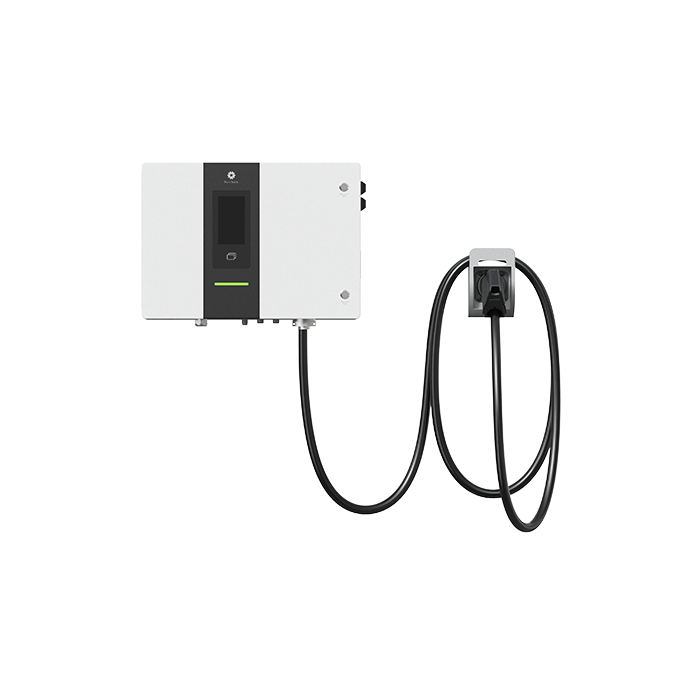

Venus V3
20kW/30kW
Venus V3 is an integrated‑type DC charger available in 20kW and 30kW power ratings. It supports wall‑mounted and pedestal installation, suitable for a wide range of indoor and outdoor charging scenarios.
Product Advantages
-
Wide‑voltage Design
Output voltage ranges from 150‑1000 Vdc.
-
User‑friendly Experience
7‑inch touch screen and low‑noise operation.
-
Easy‑to‑install Structure
20‑minute installation and 5‑minute commissioning; filter replacement finished within one minute, dust‑proof for effortless maintenance.
-
Strong Compatibility
Wall‑mounted and pedestal‑mounted installation available, suitable for various indoor and outdoor charging scenarios.
Product Parameters
Swipe Left
| Input Rating | 400Vac±15%, 3 phases, 50/60Hz, L1+L2+L3+N+PE |
| Input Current Rating | 20kW（AC 47A)/30kW（AC 63A） |
| Output Interface | 1 x CCS2 |
| Output Power | 20kW/30kW max. |
| Output Voltage | 150-1000Vdc |
| Output Current | 20kW（80A max. )/30kW（100A max.） |
| Display | 7-inch touch screen |
| IP Rating | IP55 |
| Charging Cable Length | 5m |
| Dimensions (WxHxD) | 700*500*257mm（Pole: 200*1431*100mm) |
