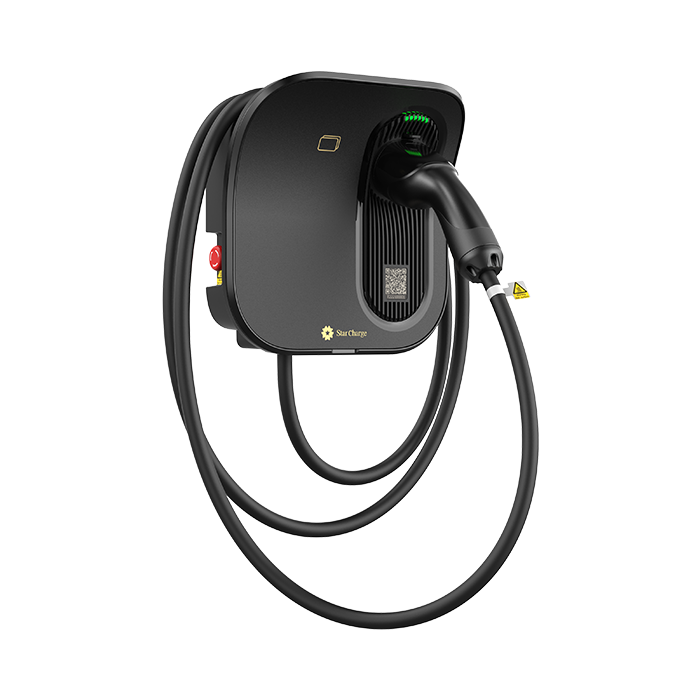

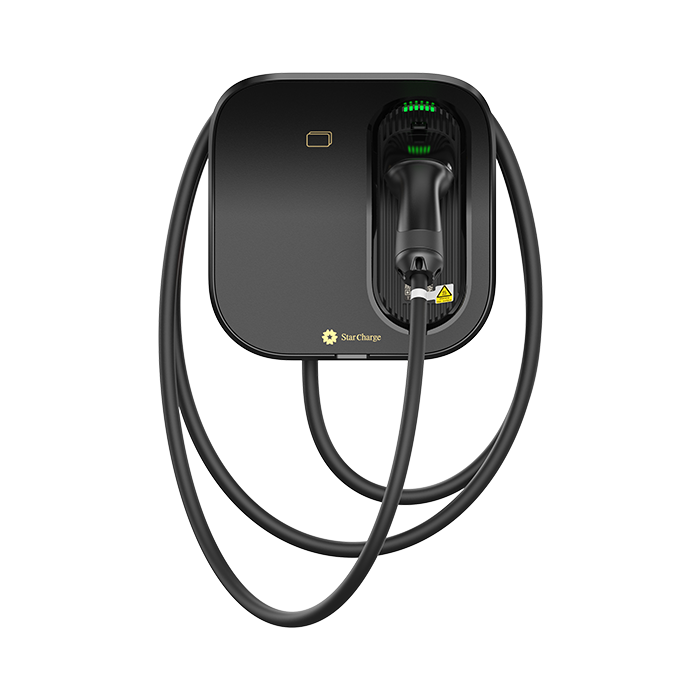

Artemis V2
features a compact crescent shape that is easy to operate and allows for quick installation and effort less maintenance.
The fully hidden screw design effectively prevents theft. With a maximum output 22 kW, adjustable down to 7 kW, it is ideal for residential charging, destination charging, and car parks.
Product Advantages
-
Safety Features
Constructed with highly flame-retardant and fire-resistant materials, offering multiple layers of electrical protection for enhanced safety.
-
Ergonomics & Compact Design
Features a connector docking station with a 23.5° bend, optimizing ergonomic handling and reducing charger thickness by 20%.
-
Flexible Integration to Backend
Fully supports the OCPP 1.6J (OCPP2.0 ready) , enabling seamless integration with StarCharge or third-party charging manage ment systems.
-
Durable Design
IP65 dust and water protection, IK10 impact resistance, and operational in temperatures from -40°C to 65°C.
Product Parameters
| Output Power&Current Rating | 7.4kW/11kW/22kW |
| Input Voltage Rating | 230V AC ±10%, 50/60Hz; 400V AC ±10%, 50/60Hz |
| Charging Interface | 1 x Type 2 plug (Case C)，1 x Type 1 plug (Case C/7kW only), 1 x GBT plug (Case C)---TBD |
| Internal RCD | AC30mA+6mA DC |
| Protection | Overcurrent, Overvoltage, Undervoltage, Residual current, Over temperature, Grounding fault, Integrated surge protection |
| Connectivity | 4G, Wi-Fi, Ethernet, RS485,Bluetooth |
| Communication to the Backend | OCPP 1.6J / OCPP 2.0---TBD |
| Operating Temperature | -40℃ ~ 65℃ |
| Storage Temperature | -40℃ to 85℃ |
| Altitude | ≤4000m |
| IP Rating | IP65 |
| IK Rating | IK10 |
