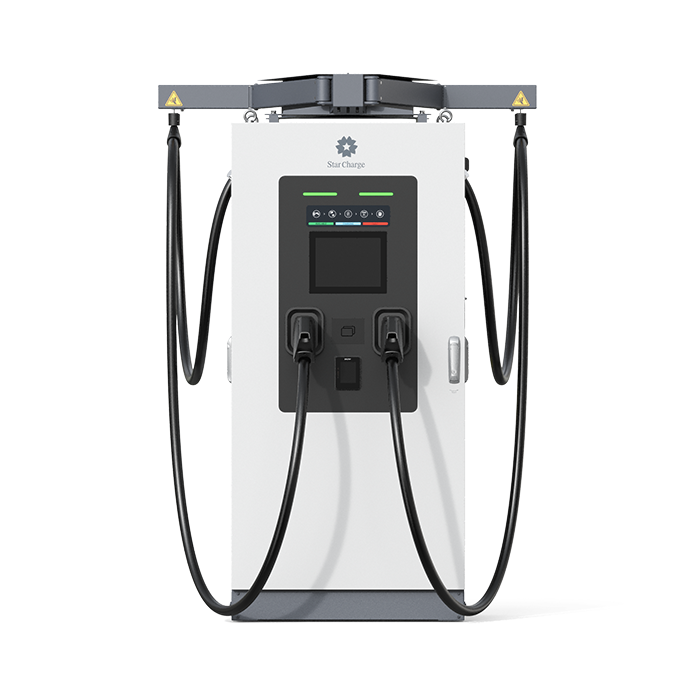

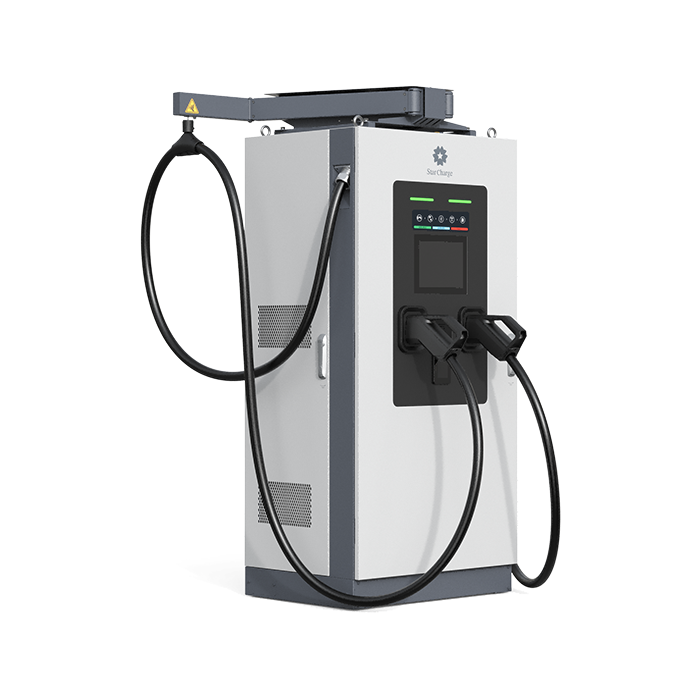

Jupiter V5
60kW/80kW/120kW
Jupiter V5 is a compact all‑in‑one DC fast‑charging pile designed for global public and destination‑charging scenarios. It comes with 60kW, 80kW and 120kW power options. Flexible connector configuration is available to meet the charging requirements of different vehicle standards, covering fleet depots, destination‑charging sites and public charging stations.
Product Advantages
-
Multi‑interface Configuration
Supports CCS2+CCS2 and CCS2+GB‑T combinations.
One charger serves multi‑standard electric vehicles.
-
High‑Efficiency & Energy‑Saving
Boasts 96% peak efficiency for low energy waste. Dynamic power allocation optimizes power usage for dual‑gun charging.
Dual‑channel air‑flow design ensures steady thermal performance.
-
User‑friendly Operation
Fitted with a 10.4‑inch touch‑screen and LED status lights, low‑noise operation.
CMS charging‑management system is optional.
-
Rugged Outdoor‑ready Build
IP55‑dust‑water‑proof and IK10 impact‑resistant, certified to IEC, CE and CB.
Compact footprint supports mass‑scale outdoor deployment with strong environmental adaptability.
Product Parameters
| Input Rating | 400Vac±15%, 3 phases, 50/60Hz, L1+L2+L3+N+PE |
| Input Current Rating | 60kW（AC 93A）/80kW（AC 121A）/120kW（AC 185A） |
| Output Interface | CCS2+CCS2/CCS2+GBT |
| Output Power | 60kW/80kW/120kW |
| Output Voltage | CCS2:150-1000Vdc/GBT: 150-950Vdc |
| Output Current | CCS2:200A rated/CCS2:250Arated/CCS2:250A rated 300A max GBT:200A rated/GBT:250A rated 300A max |
| Display | 10.4-inch touch screen |
| IP Rating | IP55 |
| Charging Cable Length | 5m |
| Dimensions (WxHxD) | 750*1600*600mm |
