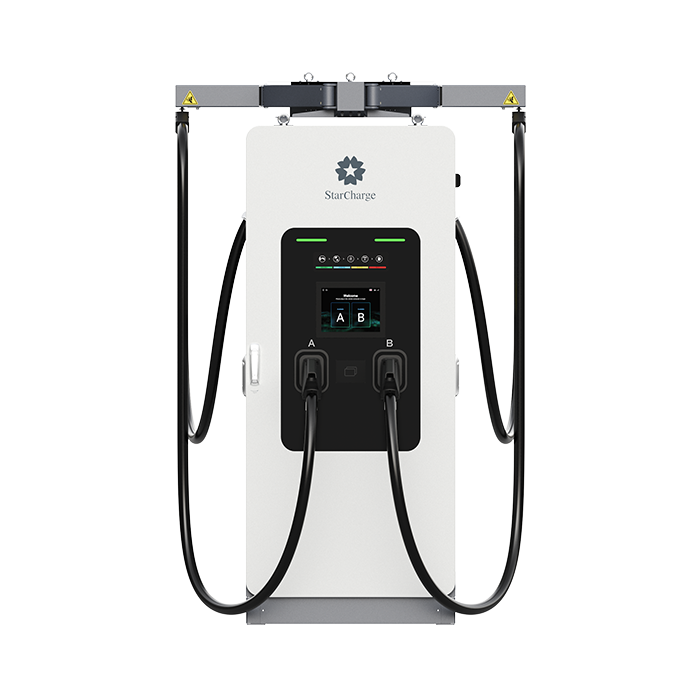

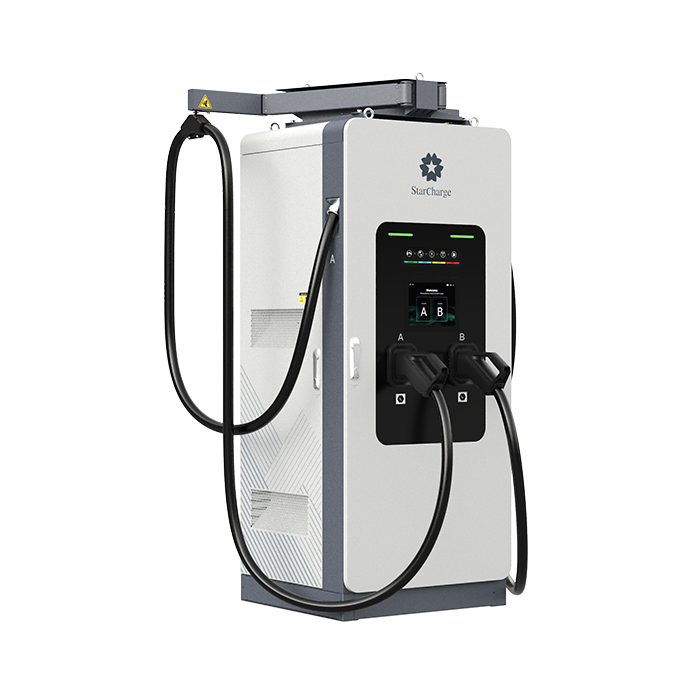

Titan V5
DC All-in-One High Power Charger
120kW; 150kW-180kW; 200kW-240kW
Maximize Power Performance & Uptime for Optimal Charging Operations.
Titan V5 is an all-in-one high-power EV charger featuring industry-leading peak efficiency of 97%, significantly reducing power loss and energy costs . Its modular design allows ensures high availability for continuous charging service.
The dynamic power distribution design enables maximum energy usage and optimal charging speed, enhancing the overall charging experience. It’s ideal for public charging stations offering 5- to 30-minute drive-through charging.
Product Advantages
-
Extremely Friendly
10.4 inch High-brightness screen, visible under strong sunlight.
Compact cabinetdesign minimizes footprint(0.54m²) , eases transport, and saves installation space.
Easy Install.
Installation:25min.
Commissioning：5min.
Easy to maintain.
IP55, aesthetically pleasing and reduces dust buildup.
1-minute replacement of filter.
-
Maximum Efficiency
Rated 300A/Boost 500A Current.
10min for an extra 5kw·h.
Single charging save 5~10min.
Pile group overturning rate enhancement 15%.
@Computing based on the 800V platform.
-
Extremely quiet:≤58dB
Noise reduction structure design 'U-shaped' ductwork.
Intelligent fan speed control algorithm.
High-efficiency Silent Module.
-
Exquisite Quality
IP55 enclosure, U-shape air duct design and filling process ensure stable operation in extreme environments.
Adaptation to high-salt, high-humidity, high-temperature, and extreme cold environments.
Product Parameters
| Input Rating | 400Vac±15%, 3 phases, 50/60Hz, L1+L2+L3+N+PE |
| Input Current Rating | 120kW（185A）/180kW（277A）/240kW（361A ） |
| Output Interface | 120kW（CCS2+CCS2）/180kW（CCS2+GBT）/240kW（GB/T+GB/T） |
| Output Power | 120kW/180kW/240kW |
| Output Voltage | 150-1000Vdc |
| Output Current | CCS2：rated 300A/GB/T： rated 250A, boost 300A |
| Display | 10.4-inch touch screen |
| IP Rating | IP55 |
| Charging Cable Length | 5m |
| Dimensions (WxHxD) | 750*1790*720mm (without connector holder and cable management system) |
