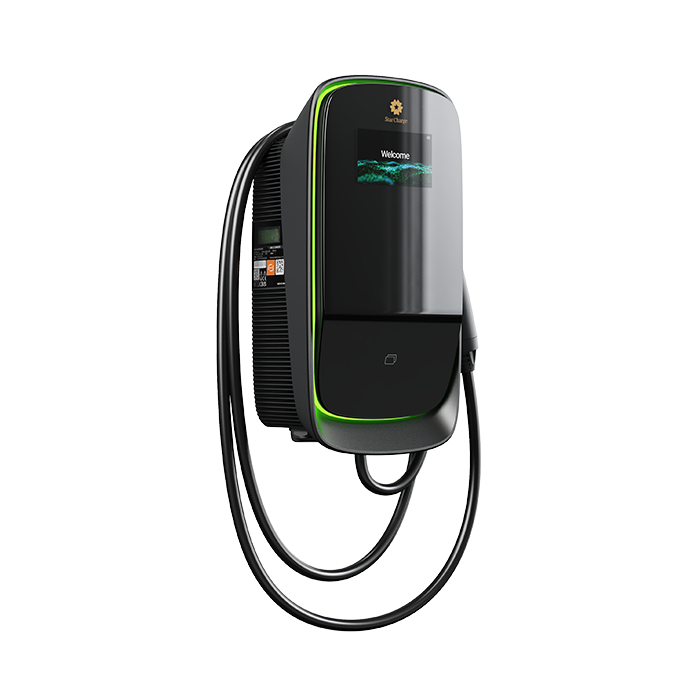

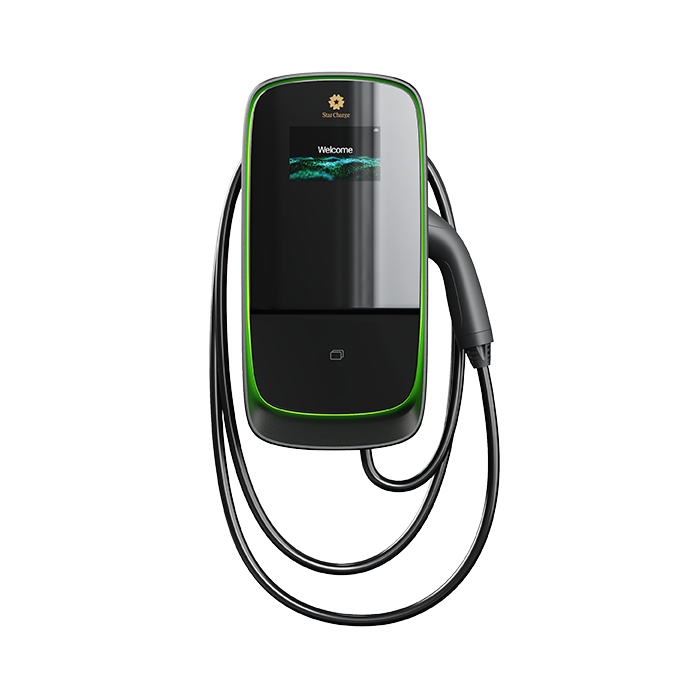

Arc V1
Power Your Drive with Next-Gen Intelligence
Ultimate Safety Meets Smart Access
Seamless Connectivity, Effortless Control
Experience the ultimate commercial and residential charging solution, offering versatile 7/11/22kW power outputs and high-accuracy MID metering for precise billing.
Drive with peace of mind thanks to integrated 6mA DC leak protection and top-tier multi-fault safeguards, while enjoying seamless, secure user access via RFID, QR codes, or mobile APP.
Stay connected anywhere using built-in 4G, Wi-Fi, and OCPP compliance, featuring an intuitive 4.3-inch LCD screen and Bluetooth 5.0 for instant, hassle-free setup.
Product Advantages
-
Excellent industrial design brings pleasant user experience.
-
Reserved with Bluetooth5.0 for easy commissioning.
-
Equipped with internal independent MID meter.
-
4.3 inch LCD screen.
Product Parameters
Swipe Left
| Input/Output Power Rating | 7/11/22kW |
| Charging Interface | 7/11kW: 1xIEC62196-2 Type2 connector (CaseC) 22kW: 1xIEC62196-2 Type2 connector/socket (CaseB/CaseC) |
| Metering | MID meter, Accuracy: 1% |
| Internal RCD | DC 6mA (Internal chip integration), need external Type A RCBO |
| Protection | Overcurrent, Overvoltage, Undervoltage, Residual current, Over temperature, Grounding fault, Integrated surge protection |
| Display | 4.3-inch LCD display |
| User Authentication | RFID card (ISO/IEC 14443A, ISO/IEC 15693), QR code, SCHome APP |
| Network Interface | 4G, Wi-Fi, Ethernet, bluetooth |
| Protocol (EVSE&Backend) | OCPP 1.6J/OCPP 2.0.1 |
| Operating Temperature | -30℃~+50℃ |
| Altitude | ≤3000m |
| IP Rating | IP55 |
| IK Rating | IK10 |
