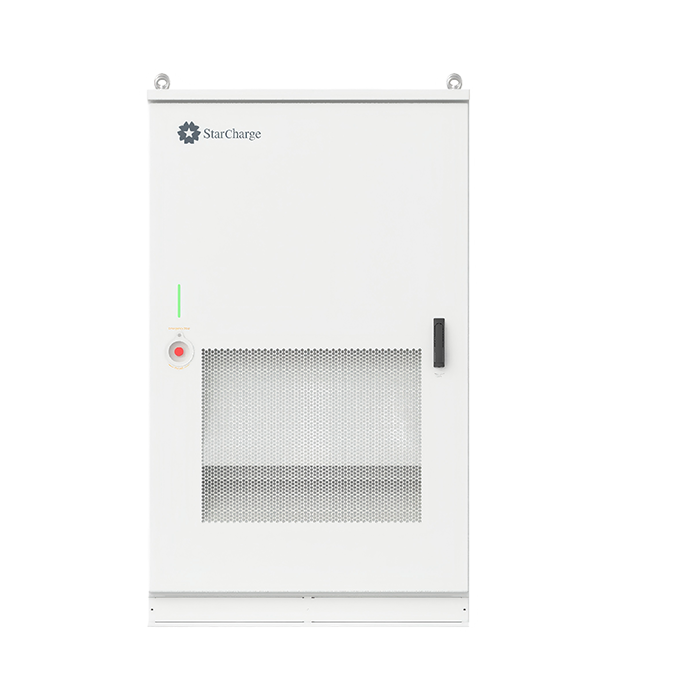

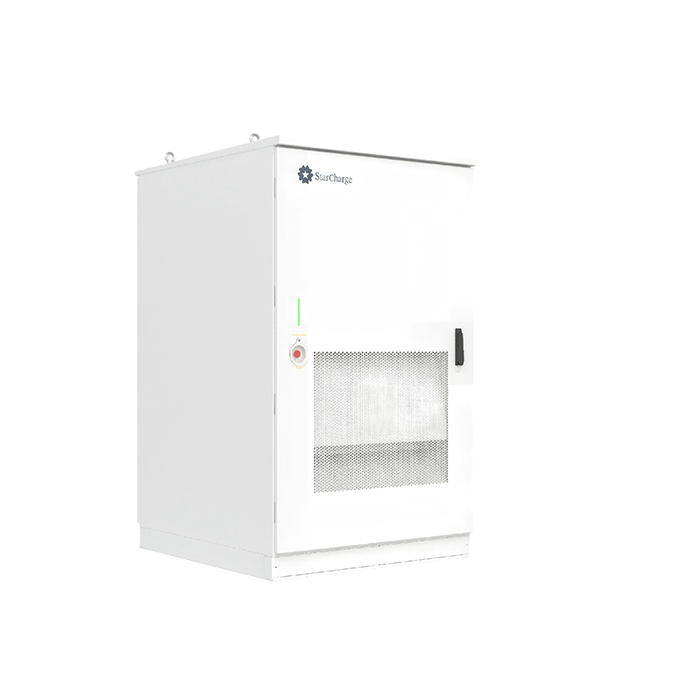

Nova V5
Nova V5 is a global‑oriented DC charging system covering 360kW and 480kW power tiers for all‑scenario applications.
It adopts the upgraded Star‑link power‑allocation topology and a separated layout for electrical compartment and module compartment.
Serving as an intelligent charging solution built around the Star‑link Power Pool, it can be flexibly matched with diverse terminals to accommodate multiple charging scenarios.
Product Advantages
-
Starlink Power Pool Technology
Starlink dynamic power distribution, single gun can call upon all modules.
-
Multiple smoothing upgrades
It enables smooth upgrades of rectifier cabinet power and terminal types.
-
Multiple Dispenser combinations
It can be combined with both liquid cooled and air-cooled terminals, and can flexibly adapt to different.
-
Application scenariosAggregate power
Support for aggregated power, enabling power expansion of old power stations and realization of megawatt-level products
-
Efficient and stable module
Using the fully gelled process for the rectifier module can reduce the failure rate and extend the service life of the equipment.
-
High security protection
Input undervoltage protection, output overvoltage protection, short circuit protection, overload protection, overtemperature protection, etc.
Product Parameters
| AC Input Voltage | 400Vac±15%, three-phase, 50/60Hz, 2 x (L1+L2+L3+N+PE) |
| AC Input Current | 737A |
| Output Power | 480kW |
| Output Voltage | 150-1000V DC |
| Output Current | 1600A |
| IP Rating | IP55 |
| IK Rating | IK10 |
| EVSE Cooling | Forced air-cooling |
| Dimensions (WxHxD) | 1150*1750*1050mm |
