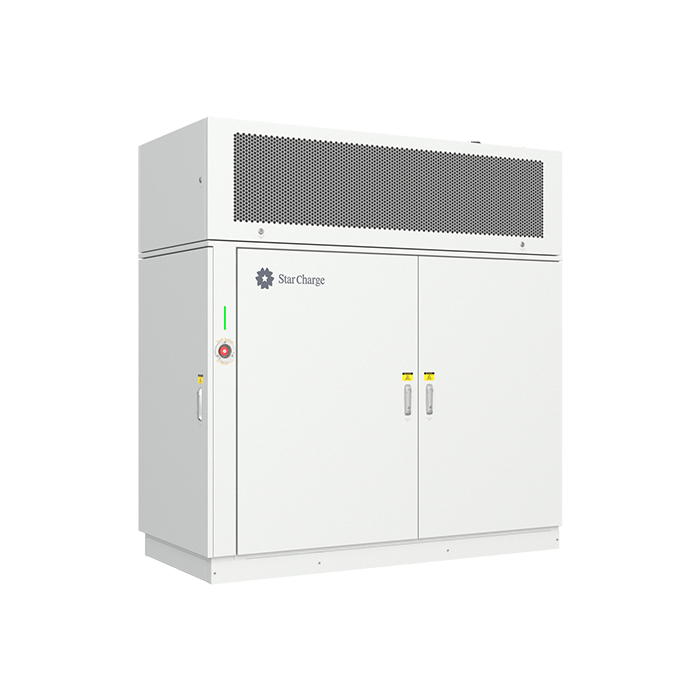

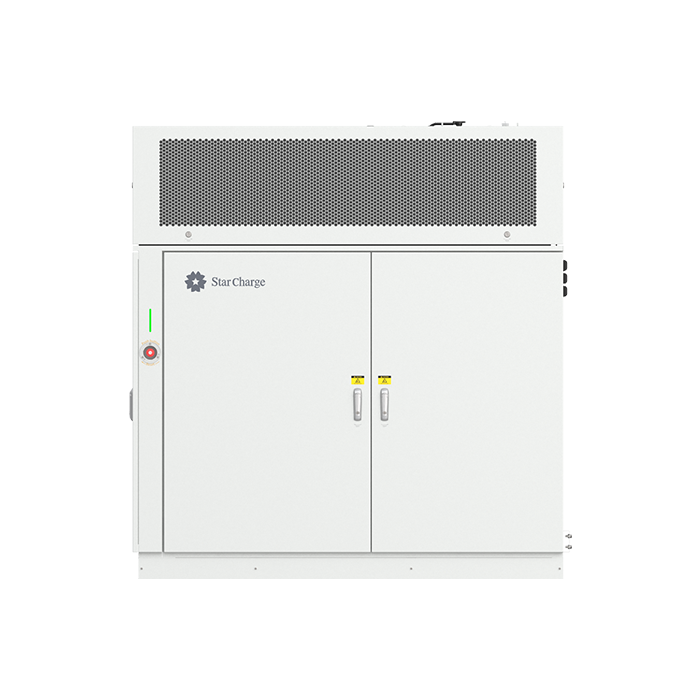

Nereus
Nereus is a liquid‑cooled rectifier and power cabinet, the core equipment for high‑power charging stations.
It features high power output, extended service life, maintenance‑free operation and outstanding adaptability to extreme environments.
Compatible with liquid‑cooled and air‑cooled charging terminals, it suits diversified scenarios. The 720‑kW model supports up to 18 user‑unit ports per power cabinet.
Product Advantages
-
Ultra-Quiet: Fan Noise Below Ambient
Liquid cooling module.
Recirculating liquid cooling.
No fan, zero noise.
EC Centrifugal Fan.
Large size, low speed.
Stepless speed regulation.
Oise level as low as 55dBLiquid cooling module.
Recirculating liquid cooling.
No fan, zero noise.
EC Centrifugal Fan.
Large size, low speed.
Stepless speed regulation.
Oise level as low as 55dB.
-
Ultra-Efficiency： Triple efficiency guarantee
Module Efficiency ≥97%.
Efficiency Optimization Algorithm: +0.5% Gain.
System Efficiency ≥96%.
DPA2.0 Starlink Power Pool.
Resource utilization rate increased by 20%.
100% Power Flexibility.
Allocate on demand, optimize holistically, customize flexibly.
-
Maintenance-Free
Electrohydraulic quarantine，High-Performance Cooling，Adopting a 3D waterway，Uniform Thermal Distribution，Longevity Assured.
Sub-warehouse quarantine，High-Security Design，Integrated die-cast housing，Isolated Liquid-Power Design，Leak & Shock Proof.
High IP Rating：Component Bay IP65，Overall IP55 Protection.
-
Different scenarios, flexible combinations
It can be combined with both liquid-cooled and air-cooled terminals, and can flexibly adapt to different application scenarios.
Product Parameters
| AC Input Voltage | 400Vac±15%, three-phase, 50/60Hz, 2 x (L1+L2+L3+N+PE) |
| AC Input Current | 1100A |
| Output Power | 720kW |
| Output Voltage | 150-1000V DC |
| Output Current | 2400A |
| IP Rating | IP55 |
| IK Rating | IK10 |
| EVSE Cooling | Liquid-cooling (ethylene glycol) |
| Dimensions (WxHxD) | 2000*2100*950 mmm |
