Titan V4
240kW/320kW

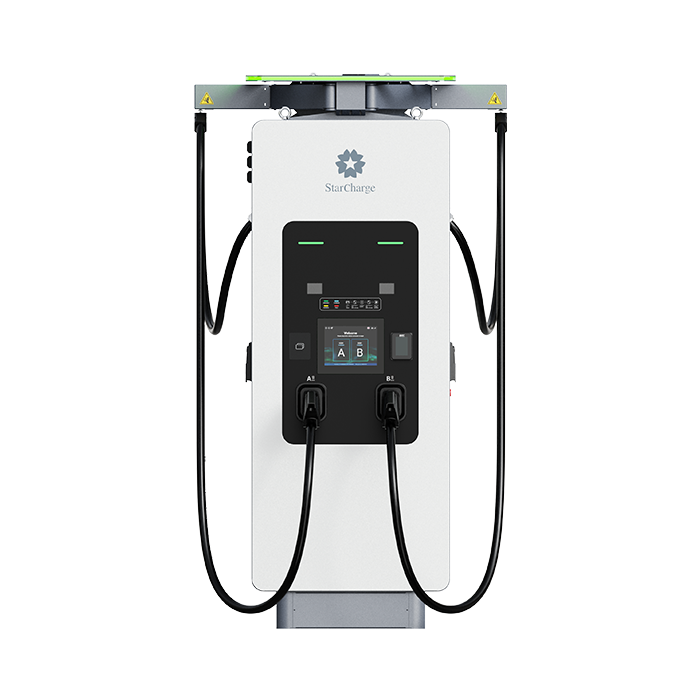

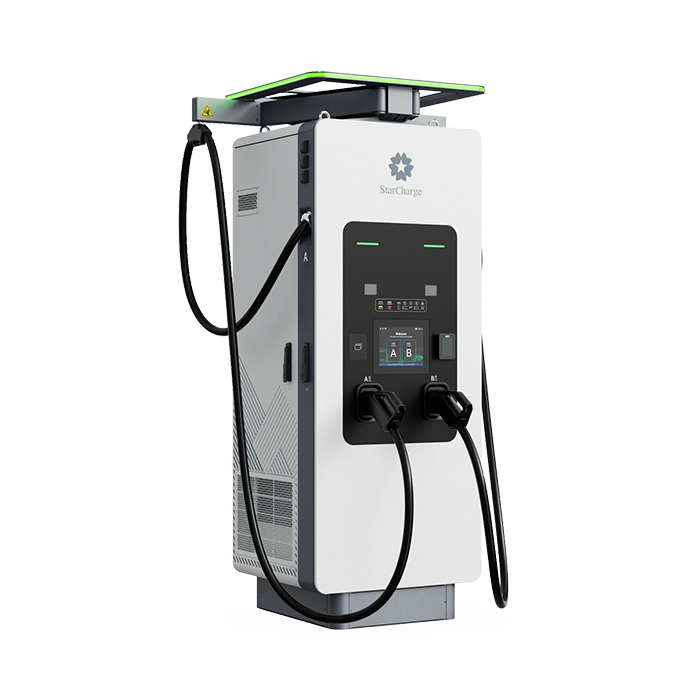

Titan V4 is a high‑power integrated DC charger offered in 240kW and 320kW variants. It features high‑power output, high efficiency and wide‑ranging compatibility. Charging cables are available in 5‑meter and 6‑meter lengths. An articulated‑arm cable‑management system is optional, alongside support for dynamic load management.
Product Advantages
-
High‑Performance Charging
Full‑load efficiency ≥97%, maximum 500A output per connector.
Dynamic power allocation delivers optimized power output.
-
User‑Friendly Design
Ergonomic cable‑management system eases operation and expands the reach range.
-
Flexible Configuration
CCS1 and NACS connectors are optional on selected models to meet regional requirements.
Product Parameters
Swipe Left
| Input Rating | 400Vac±15%, 3 phases, 50/60Hz, L1+L2+L3+N+PE |
| Input Current Rating | 240kW（AC361A）、320kW（AC481A） |
| Output Interface | CCS2+CCS2 (simultaneous charging) |
| Output Power | 240kW/320kW |
| Output Voltage | 150-1000Vdc |
| Output Current | 300A rated (500A max.) |
| Display | 10.4-inch touch screen |
| IP Rating | IP55 |
| Charging Cable Length | 5m or 6m (optional) |
| Dimensions (WxHxD) | 800*2050*750mm/1259*2225*800mm (with cable management system) |
