Small Power DC Charge and discharge

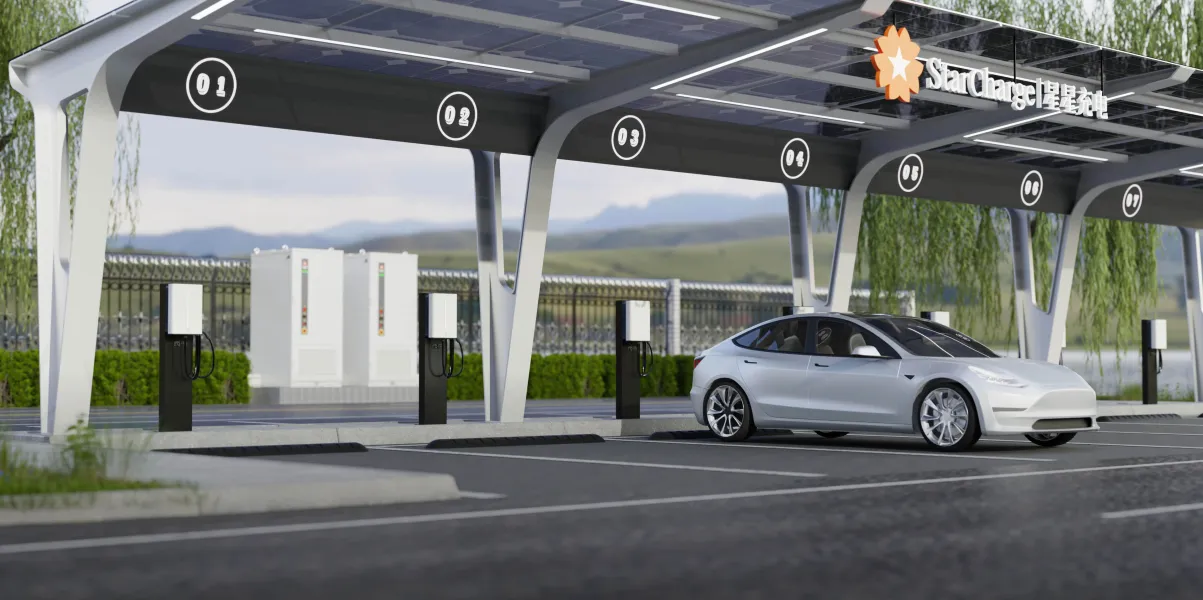

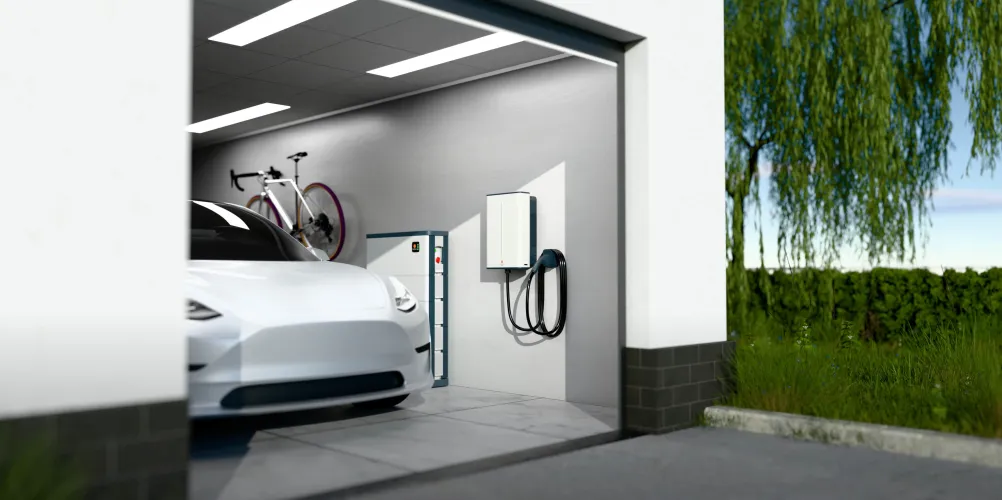

Applicable to homes | Park demonstration station | Solar-storage-charging demonstration stations and other scenarios
High protection Greater peace of mind
Independent air duct design,IP65Protection Level
Worry-free use across all scenarios
Chargeable and dischargeable
Double revenue
Valley charge, peak discharge Grid Stabilization
Each 11kW V2GAnnual savings 0.5 ten thousand RMB@Zhejiang
Parameter Configuration

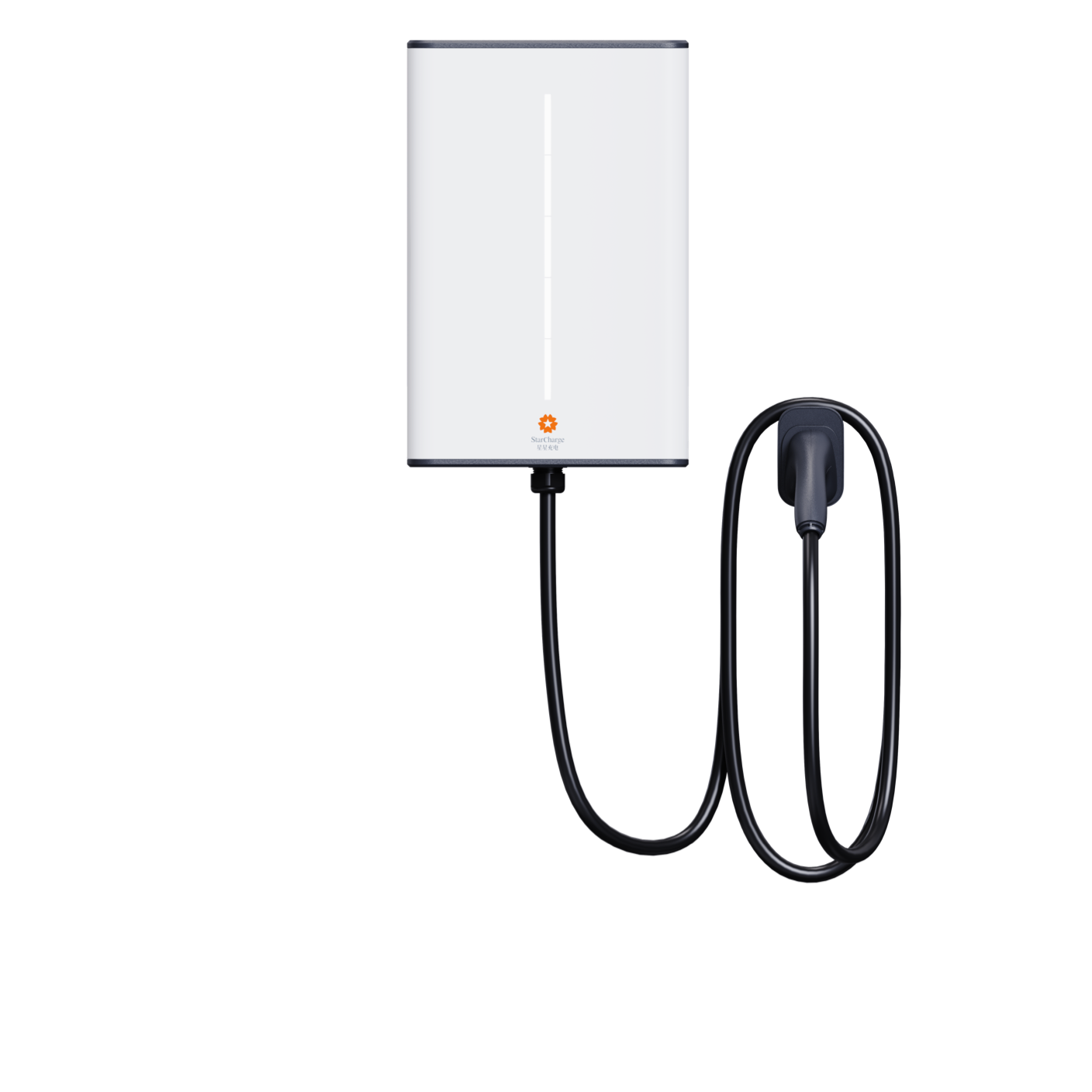

Wall-mounted

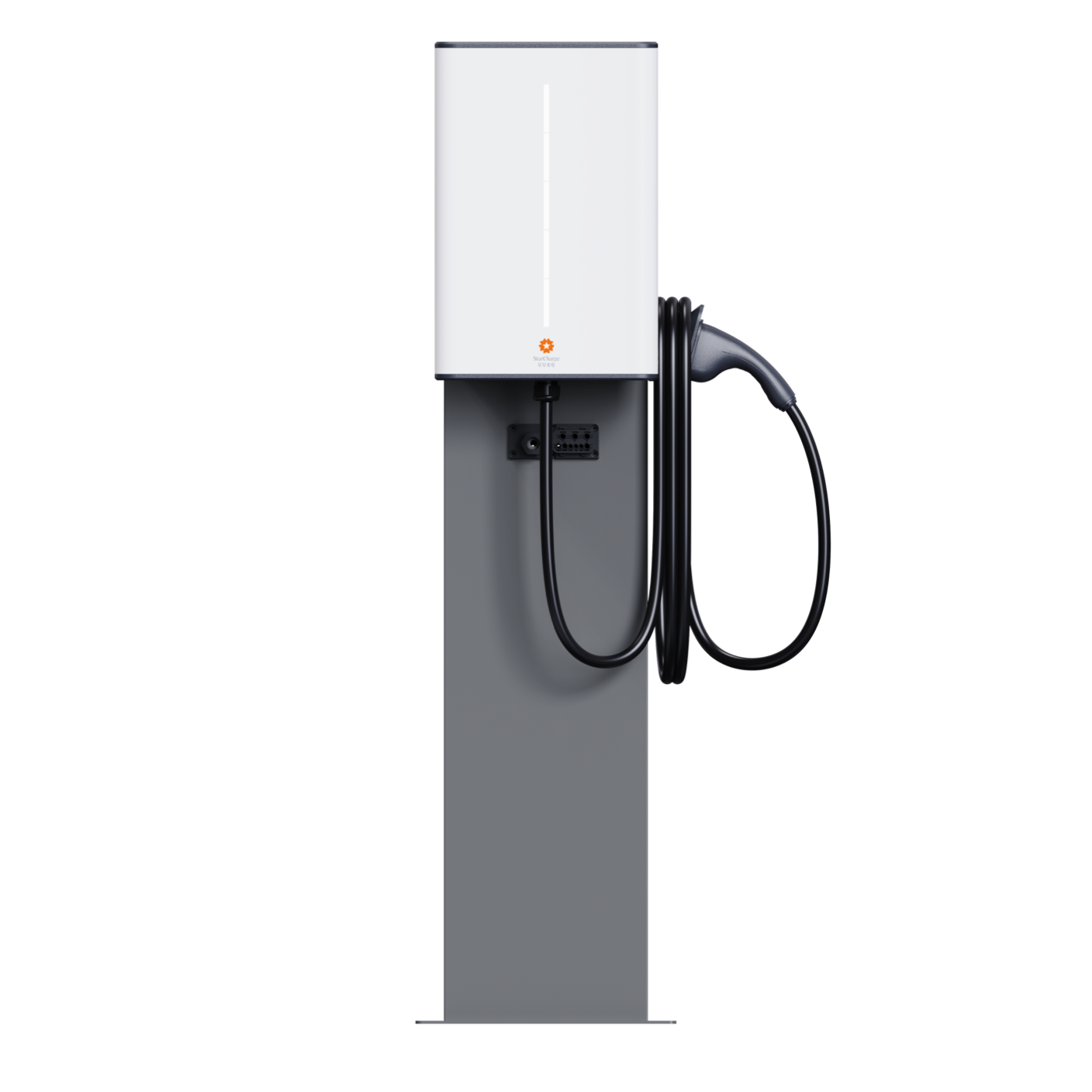

Column-mounted
Electrical - Discharging
Output Power：7kW/11kW(Max)
Output Voltage：200-920Vde
WorkingFrequency：45~65Hz
Output Current：36.6A(Max)
Discharge Output：400Vac rated
Discharge Current：16A Max
Environmental
Operating Temperature：-30°C~50°C (50°Cderating above)
Noise Level：<55dB (Silent Mode<45dB)
Altitude：<3000m(2000mderating above)
Protection Level：IP65
