High efficiency, safe, and long lifespan
AI All-scenario enabled

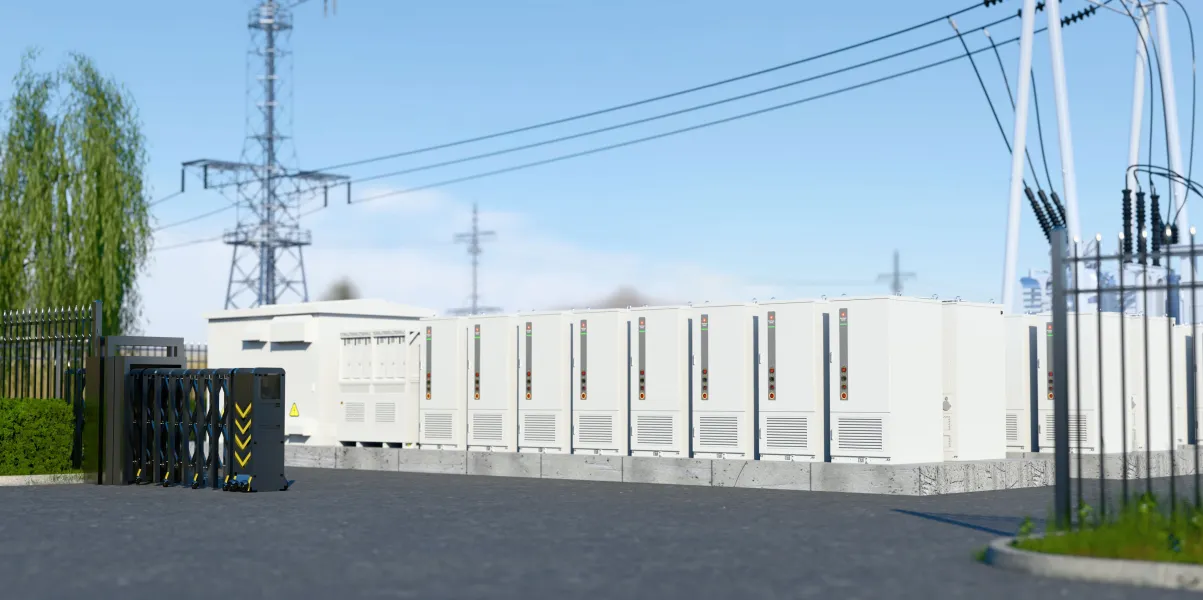

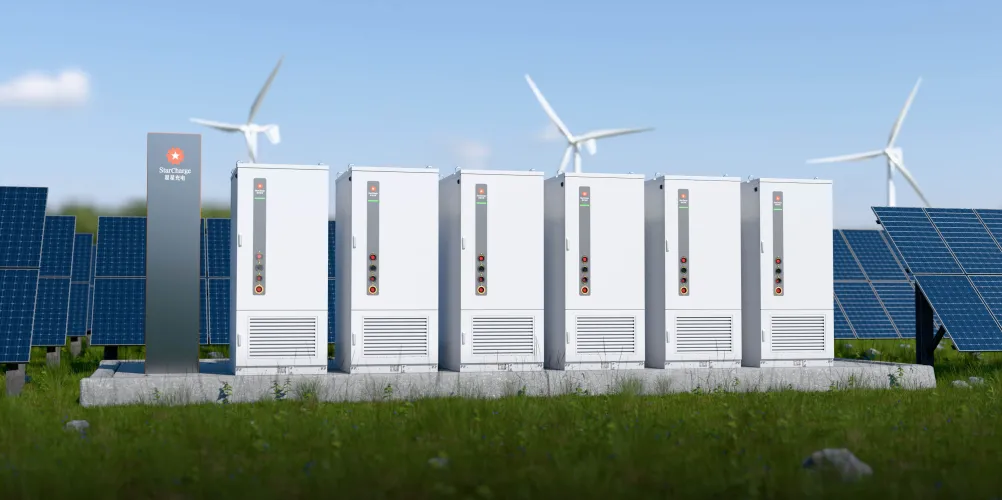

Applicable to solar-storage-charging stations, factories, industrial parks, and various other scenarios
Facilitating green power consumption, peak-valley arbitrage, dynamic capacity expansion, and emergency backup
Ultimate safety
Pioneering from prevention to fire protection
7-level safety emergency response
Multi-layered protection
Efficient smart core
Battery Cluster Smart Platform
Digital Twin
AI Optimized algorithm
Parameter Configuration

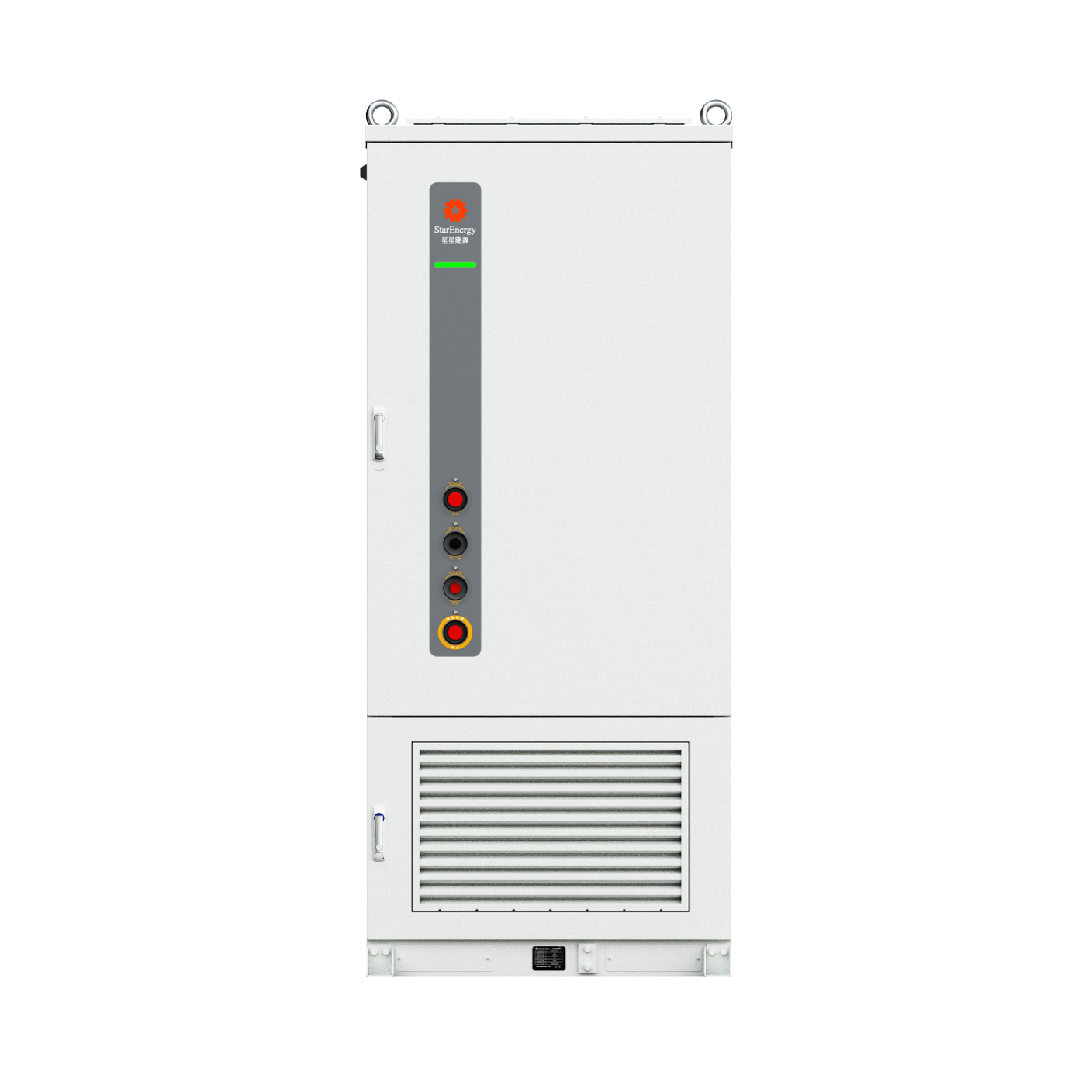

eBox AL261Energy Storage System
Basic Information
Full Cabinet Dimensions：997*1395*2325（mm）
Net Weight(includingBattery Pack)：≈2700kg
System Parameters
Cell capacity：314Ah / LEP Square
Battery system nominal voltage：832 V
Battery system available capacity：247kWh
DC Operating Voltage Range：728~936 V
Battery system nominal energy：261kWh
Charge/Discharge Rate：≤0.5P
Working Environment
Operating Temperature：-20℃~ +55℃（＞40℃Derating）
Cabinet anti-corrosion and weather resistance: defaultC3（C4/C5Optional）
Fire Protection Parameters
Fire extinguishing agent: Perfluorohexanone+Water(Battery Cabin) 、Aerosol(Electrical Cabin)
Explosion-proof capability: Cell-level pressure relief,PACK-level pressure relief、Cabinet-level pressure relief
Fire detection: Temperature, combustible gas, smoke
Fire protection type: Aerosol+Perfluorohexanone+PACK-level immersion+System cabinet immersion+Explosion-proof
