Grid-side centralized energy adaptation
Global market certifications
Applicable to new energy storage, thermal power storage, grid-side standalone storage, and transformer area storage scenarios, helping peak shaving, improving green power consumption, reducing wind/solar curtailment, and increasing station revenue.
Can enhance grid stability, protect grid safety, participate in auxiliary power services, execute frequency regulation, voltage stabilization, black start and other tasks, save grid investment, and realize peak-valley arbitrage.
Safety
Three-level fire protection, three-level pressure relief
Full lifecycle safety assurance
High efficiency
High Quality314AhEnergy storage cells with improved energy density32.6%,
Reduced land footprint25%
Convenient O&M
Adopts flexible modular expansion design
Effectively improves system compatibility and adaptability
Parameter Configuration

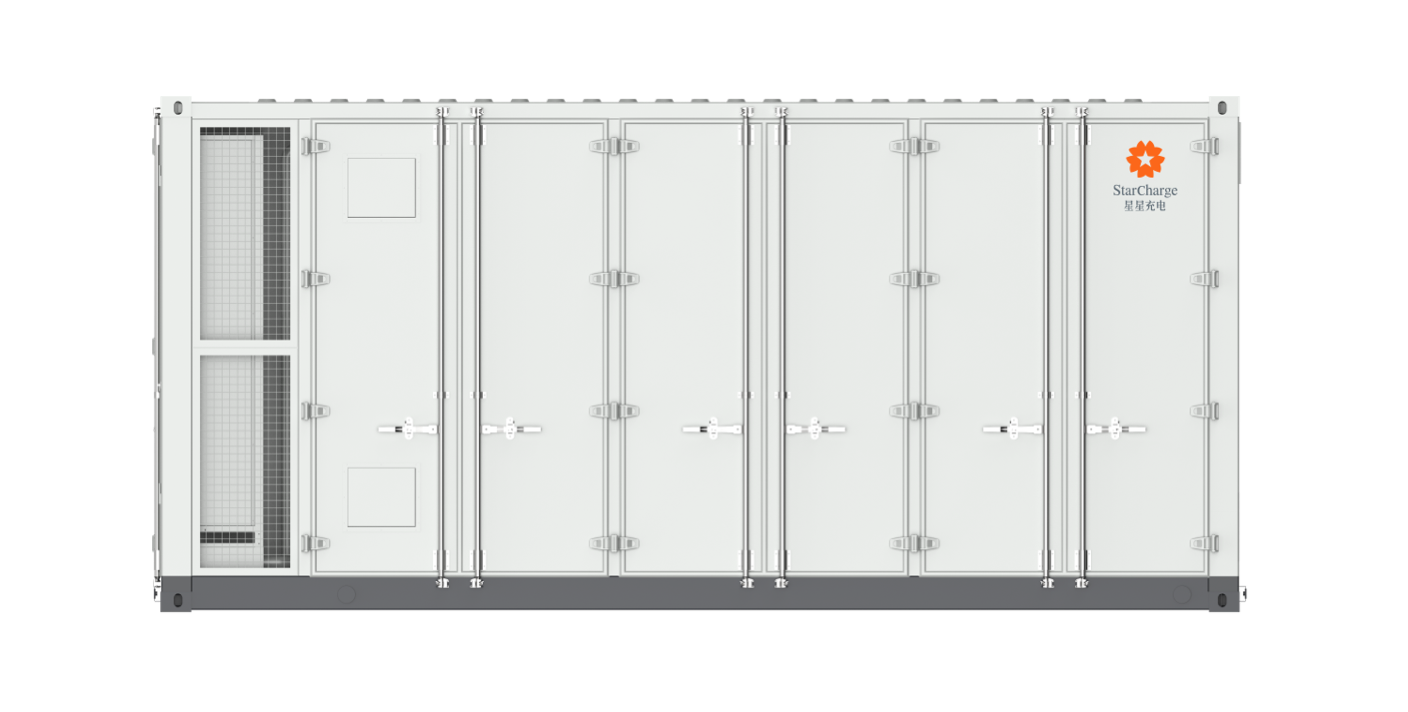

5MWh Centralized Energy Storage Container

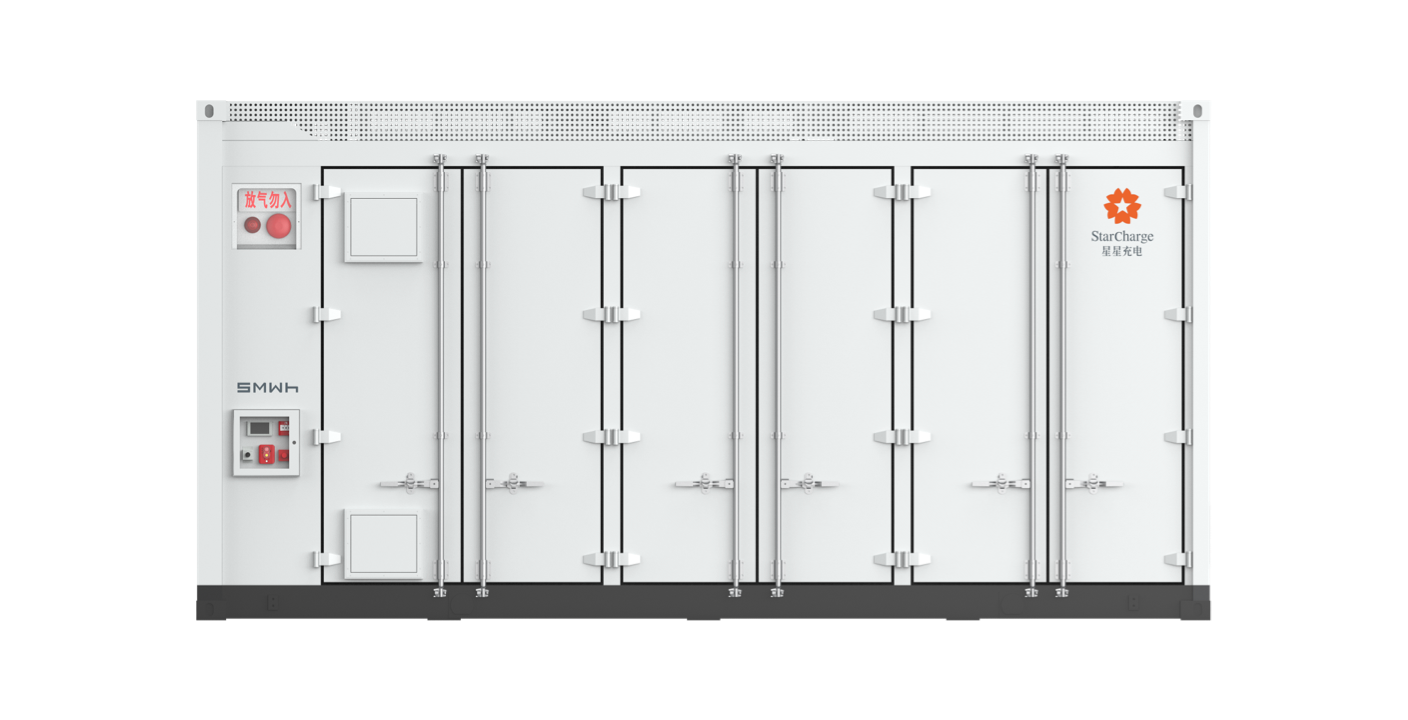

2.5MW/5MWh String Energy Storage Container
Main Body (Integrated)
Dimensions：6250×2700×3000mm
Weight：≈43t
Protection Level：IP55
Anti-corrosion Level：≥C4
Main Body(String-type）
Dimensions：6058×2438×3100mm
Weight：≈44t
Anti-corrosion Level：≥C4-M
PACKProtection Level：IP67
Prefabricated cabin protection level：IP55
Technical Specifications
Recommended Operating Voltage：1040Vdc ~ 1497.6Vdc
Charge/Discharge Rate：≤0.5P
Nominal Voltage：1331.2Vdc
Nominal Energy：5015.96kWh
Environmental
Temperature：-30℃ ~ 55℃
Altitude：<3000m
Humidity：0% ~ 95%
