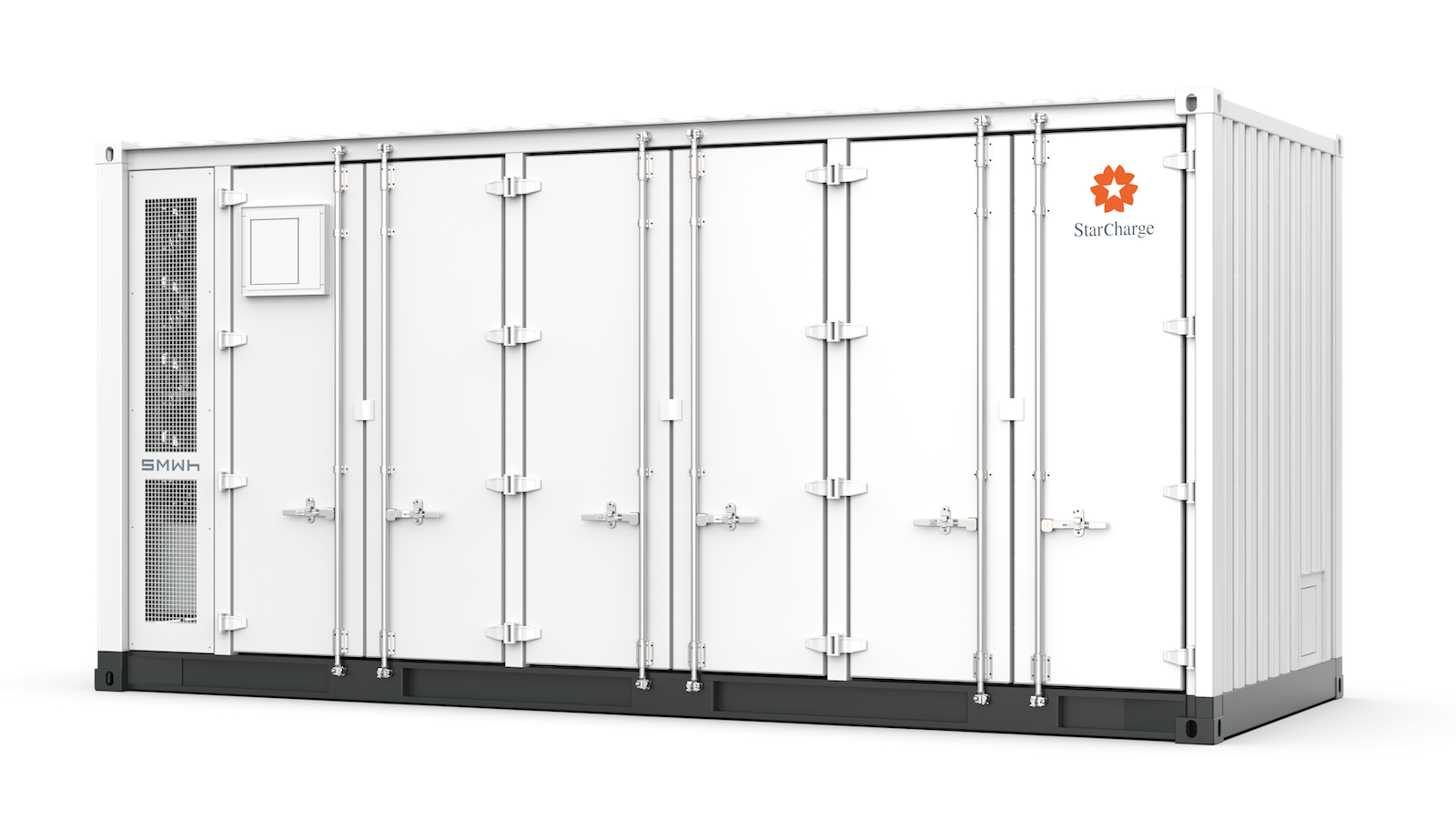

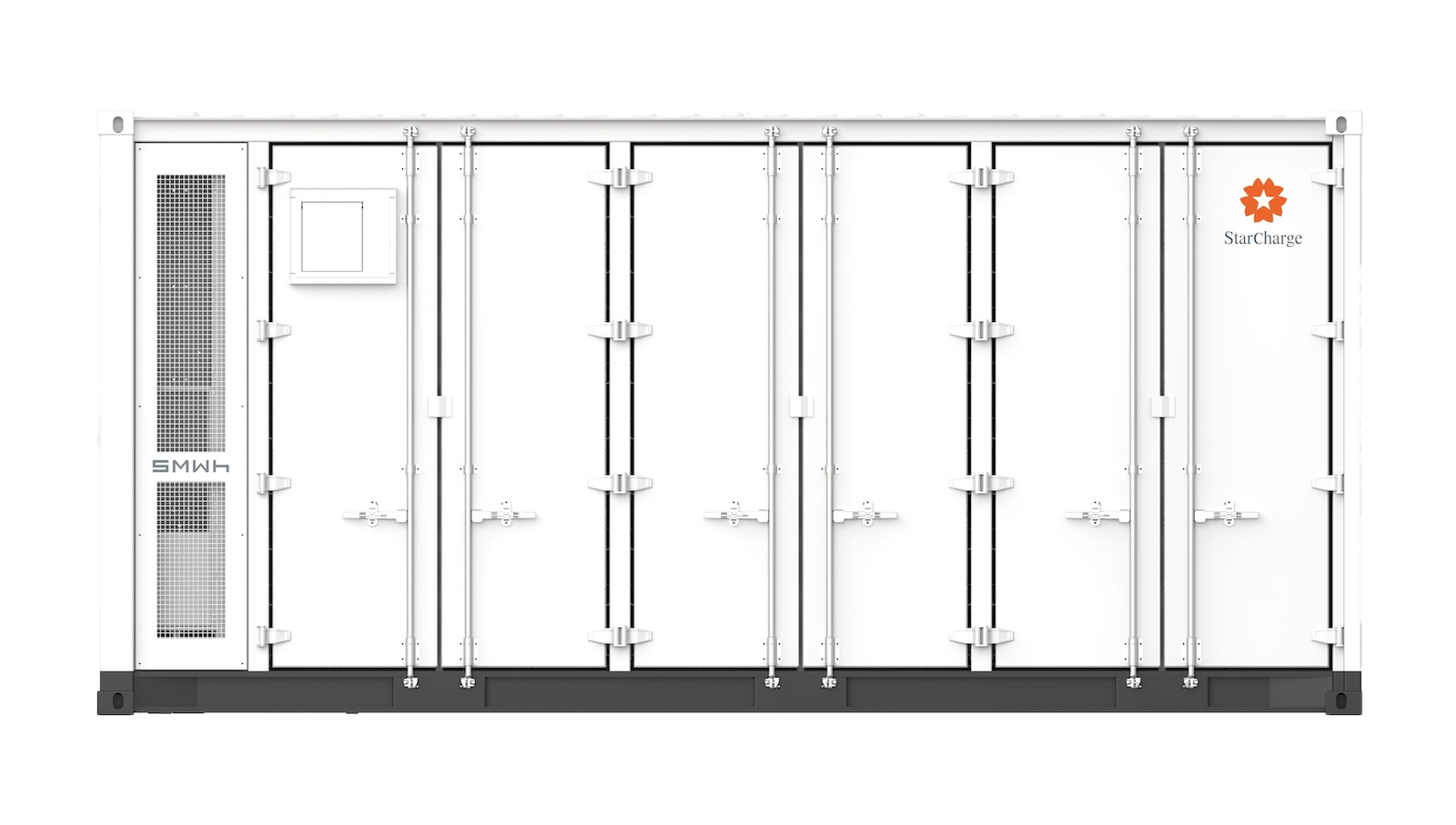

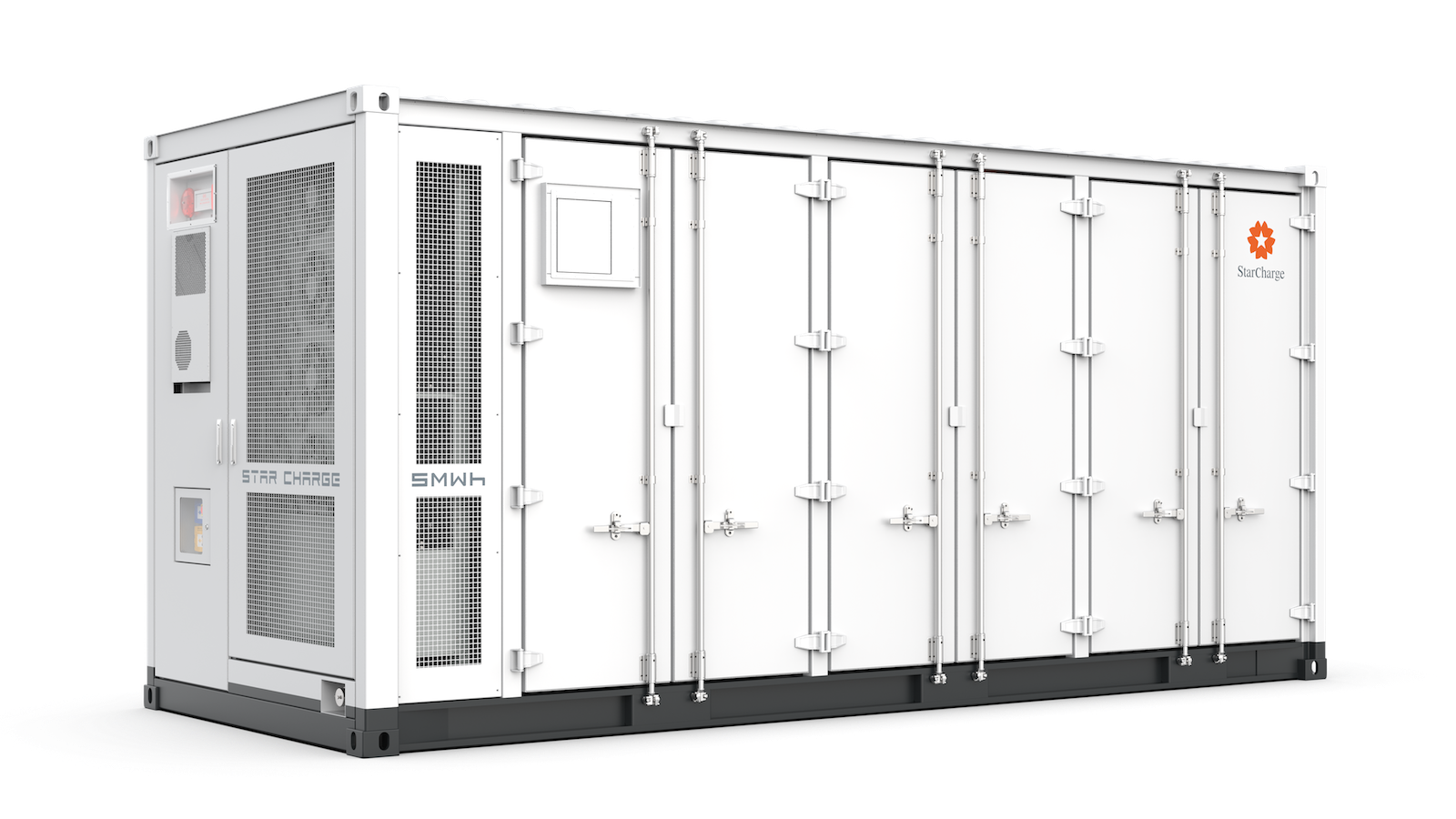

2.5MW/5MWh String ESS Container
EU Standard 20ft HQ Containerized 2.5MW/5MWh
All-In-One Grid-Forming String ESS
&
EU Standard 20ft HQ Containerized 2.5MW/5MWh
String ESS
EU Standard 20ft HQ Containerized 2.5MW/5MWh All-In-One Grid-Forming String ESS
- Rated Energy: 5015.96kWh
- Cell Type: LFP 3.2V / 314Ah
- Dimension(WxDxH): 6058mm*2438mm*2896mm
- Weight: ≈45T
- Certifications: IEC 62619, IEC 63056, IEC 60730, IEC 62477-1, IEC 61000-6-2,
IEC 61000-6-4, IEC 6293-5-2, IEC 60529, UN 38.3, UL 9540A,
EN 50549-2
Hyper Integration
- ALL-IN-ONE Design: Integrates 12×215 kW PCS and 5 MWh battery in a single container, reducing on-site commissioning time by 50% and improving deployment efficiency.A
Advanced Protection
- Triple-layer fire protection and seven-level electrical safeguards. Features automatic disconnector protection and a 2h+ fire-resistant enclosure.
Enhanced Efficiency
- I Thermal Management: Reduces system energy consumption by 40%. DC RTE ≥96%, AC RTE ≥88.5%. Operational noise≤74dB.

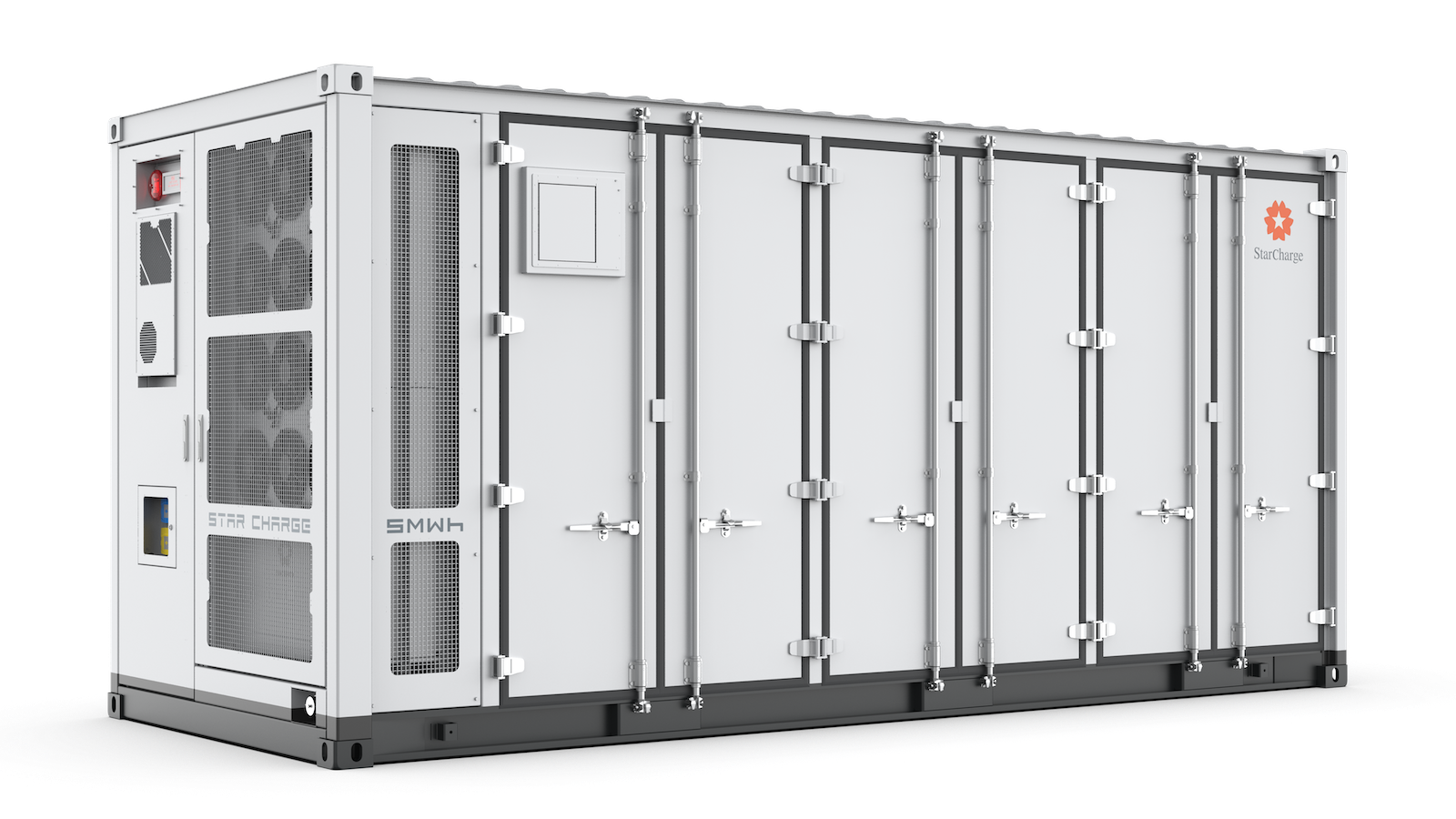

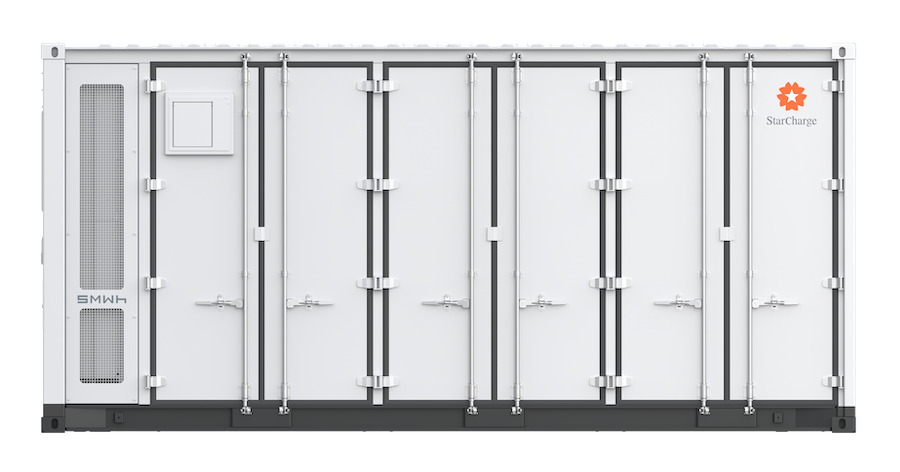

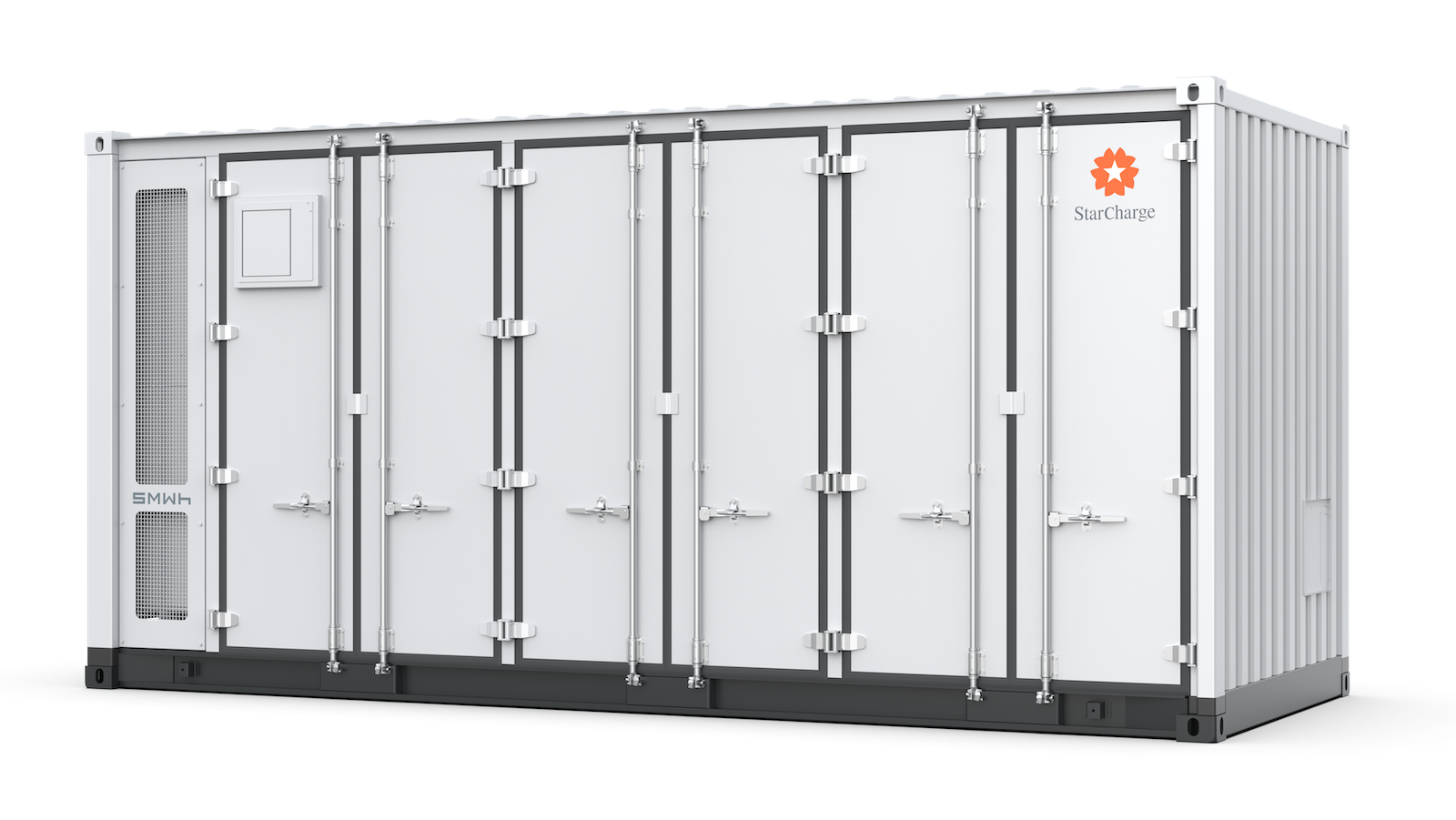

EU Standard 20ft HQ Containerized 2.5MW/5MWh String ESS
- Rated Energy: 5015.96kWh
- Cell Type: LFP 3.2V / 314Ah
- Dimension(WxDxH):6058mm*2438mm*2896mm
- Weight: ≈43T
- Certifications: IEC 62619, IEC 63056, IEC 60730, IEC 62477-1, IEC 61000-6-2,
IEC 61000-6-4, IEC 6293-5-2, IEC 60529, UN 38.3, UL 9540A
Flexible Adaptation
- One Rack One Management: Each battery rack is adapted to one string PCS. Based on this architecture, it can adapt to different PCS and refine battery management.
Advanced Protection
- Triple-layer fire protection and seven-level electrical safeguards. Features automatic disconnector protection and a 2h+ fire-resistant enclosure.
Enhanced Efficiency
- AI Thermal Management: Reduces system energy consumption by 40%. DC RTE ≥96%, AC RTE ≥88.5%. Operational noise≤74dB.
